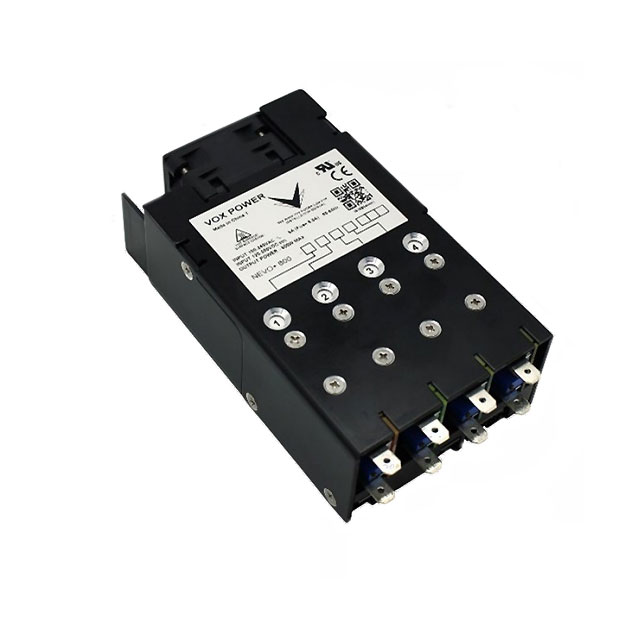

NEVO+600ML-5080-DK000

Active

Vox Power Ltd.

AC/DC CONVERTER 2X12V 2X24V 300W

Deep-Dive with AI

Search across all available documentation for this part.

NEVO+600ML-5080-DK000

Active

Vox Power Ltd.

AC/DC CONVERTER 2X12V 2X24V 300W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NEVO+600ML-5080-DK000

Applications	Medical
Approval Agency	CB, CSA, UL, CE
Current - Output 1	5 A
Current - Output 2	5 A
Current - Output 3	3.125 A
Current - Output 4	3.125 A
Efficiency	86 %
Features	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Power (Watts)	300 W
Size / Dimension [x]	133.8 mm
Size / Dimension [x]	5.27 "
Size / Dimension [y]	3.06 "
Size / Dimension [y]	77.7 mm
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Standard Number	60601-1
Type	Enclosed
Voltage - Input [Max]	300 VDC, 264 VAC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V
Voltage - Output 2	12 V
Voltage - Output 3	24 V
Voltage - Output 4	24 V

NEVO+600 Series

...

Part	Voltage - Output 2	Current - Output 6	Mounting Type	Applications	Current - Output 2	Current - Output 1	Power (Watts)	Voltage - Output 1	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 4	Current - Output 4	Voltage - Output 5	Number of Outputs	Voltage - Output 3	Current - Output 5	Current - Output 3	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Voltage - Output 6	Voltage - Isolation	Features	Standard Number	Voltage - Output 5 [custom]
Vox Power Ltd. NEVO+600ML-8325-DK000	24 V	5 A	Chassis Mount	Medical	3.125 A	3.125 A	600 W	24 V	CB CE CSA UL	41 mm	133.8 mm	3.06 "	1.61 "	77.7 mm	5.27 "	12 V	15 A	12 V	6	24 V	5 A	7.5 A	Enclosed	-20 C	70 °C	264 VAC 300 VDC	85 VAC 120 VDC	86 %	12 V	4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60601-1
Vox Power Ltd. NEVO+600M-3221-DK000	12 V		Chassis Mount	Medical	15 A		425 W	24 V	CB CE CSA UL	41 mm	133.8 mm	3.06 "	1.61 "	77.7 mm	5.27 "	5 V			4	12 V		15 A	Enclosed	-20 C	70 °C	264 VAC 300 VDC	85 VAC 120 VDC	86 %		4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60601-1
Vox Power Ltd. NEVO+600ML-5080-DK000	12 V		Chassis Mount	Medical	5 A	5 A	300 W	12 V	CB CE CSA UL	41 mm	133.8 mm	3.06 "	1.61 "	77.7 mm	5.27 "	24 V	3.125 A		4	24 V		3.125 A	Enclosed	-20 C	70 °C	264 VAC 300 VDC	85 VAC 120 VDC	86 %		4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60601-1
Vox Power Ltd. NEVO+600ML-5143-DK000	12 V		Chassis Mount	Medical	5 A	5 A		12 V	CB CE CSA UL	41 mm	133.8 mm	3.06 "	1.61 "	77.7 mm	5.27 "		3.75 A		5	5 V	7.5 A	25 A	Enclosed	-20 C	70 °C	264 VAC 300 VDC	85 VAC 120 VDC	86 %		4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60601-1	24 V
Vox Power Ltd. NEVO+600SL-5820-DK000	12 V		Chassis Mount	ITE (Commercial)	5 A	5 A	450 W	12 V	CB CE CSA IEC UL	41 mm	77.7 mm	3.06 "	1.61 "	77.7 mm	3.06 "	24 V	3.125 A	12 V	5	24 V	15 A	3.125 A	Enclosed	-20 C	70 °C	264 VAC 370 VDC	85 VAC 120 VDC	86 %		4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60950-1 62368-1
Vox Power Ltd. NEVO+600M-2228-DK000	12 V		Chassis Mount	Medical	15 A	15 A	450 W	12 V	CB CE CSA UL	41 mm	133.8 mm	3.06 "	1.61 "	77.7 mm	5.27 "	24 V	3.125 A		5	12 V	3.125 A	15 A	Enclosed	-20 C	70 °C	264 VAC 300 VDC	85 VAC 120 VDC	86 %		4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60601-1	24 V
Vox Power Ltd. NEVO+600ML-0582-DK000	12 V		Chassis Mount	Medical	5 A	5 A	450 W	12 V	CB CE CSA UL	41 mm	133.8 mm	3.06 "	1.61 "	77.7 mm	5.27 "	24 V	3.125 A	12 V	5	24 V	15 A	3.125 A	Enclosed	-20 C	70 °C	264 VAC 300 VDC	85 VAC 120 VDC	86 %		4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60601-1
Vox Power Ltd. NEVO+600SL-4081-DK000	24 V		Chassis Mount	ITE (Commercial)	3.125 A	3.75 A	425 W	48 V	CB CE CSA IEC UL	41 mm	77.7 mm	3.06 "	1.61 "	77.7 mm	3.06 "	5 V			4	24 V		3.125 A	Enclosed	-20 C	70 °C	264 VAC 370 VDC	85 VAC 120 VDC	86 %		4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60950-1 62368-1
Vox Power Ltd. NEVO+600M-4082-DK000	24 V		Chassis Mount	Medical	3.125 A	3.75 A	300 W	48 V	CB CE CSA UL	41 mm	133.8 mm	3.06 "	1.61 "	77.7 mm	5.27 "	12 V	15 A		4	24 V		3.125 A	Enclosed	-20 C	70 °C	264 VAC 300 VDC	85 VAC 120 VDC	86 %		4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60601-1
Vox Power Ltd. NEVO+600ML-1831-DK000	24 V		Chassis Mount	Medical	3.125 A	25 A	550 W	5 V	CB CE CSA UL	41 mm	133.8 mm	3.06 "	1.61 "	77.7 mm	5.27 "	24 V	7.5 A	5 V	5	24 V	25 A	3.125 A	Enclosed	-20 C	70 °C	264 VAC 300 VDC	85 VAC 120 VDC	86 %		4000 V	Adjustable Output Load Sharing PFC Remote Sense Universal Input	60601-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	15	$ 348.51

Description

General part information

NEVO+600 Series

Enclosed AC DC Converters 4 Output 12V 12V 24V 24V 85 ~ 264 VAC, 120 ~ 300 VDC Input

Documents

Technical documentation and resources

No documents available
