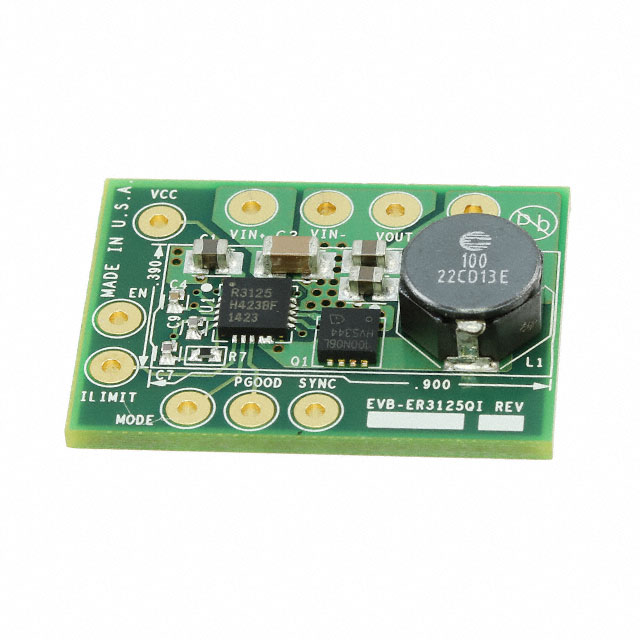

EVB-ER3125QI

Obsolete

Altera

EVAL BOARD ER3125QI 36V 2.5A REG

Search across all available documentation for this part.

Obsolete

Altera

EVAL BOARD ER3125QI 36V 2.5A REG

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output	Topology	Supplier Device Package	Voltage - Output (Min/Fixed) [Min]	Output Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Configuration	Package / Case	Mounting Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output (Max)	Utilized IC / Part	Voltage - Output [Min]	Voltage - Output [Max]	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Main Purpose	Regulator Topology	Outputs and Type	Outputs and Type
Altera ER3125QI	2.5 A	Buck Buck-Boost	20-QFN-EP (4x4)	0.5 V	Adjustable	2.2 MHz	200 kHz	Positive	20-VFQFN Exposed Pad	Surface Mount	Step-Down Step-Up/Step-Down	105 °C	-40 °C	1	3 V	36 V	36 V
Altera EVB-ER3125QI	2.5 A																	ER3125QI	0.5 V	36 V	Fully Populated	3 V	36 V	Board(s)	DC/DC Step Up or Down	Buck-Boost	Non-Isolated	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ER3125QI Enpirion® DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board
