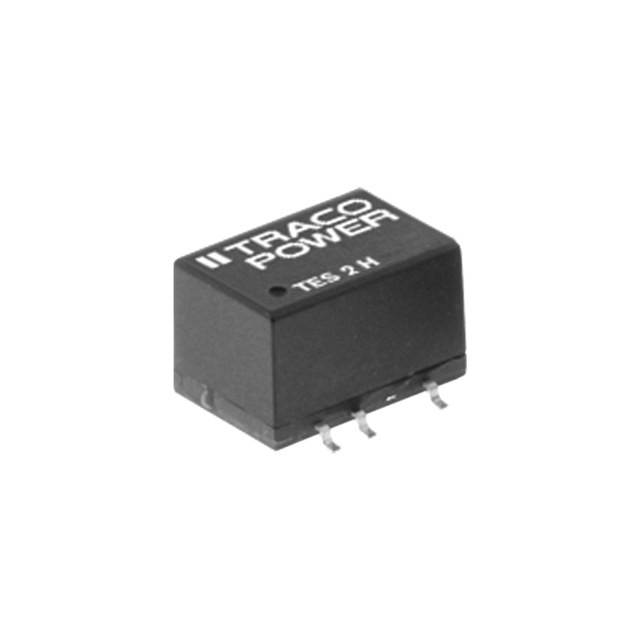

TES 2-2423H

Active

Traco Power

DC DC CONVERTER +/-15V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TES 2-2423H

Active

Traco Power

DC DC CONVERTER +/-15V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TES 2-2423H

Applications	ITE (Commercial)
Current - Output (Max)	66 mA
Efficiency	79 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module, 6 Leads
Power (Watts)	2 W
Type	Isolated Module
Voltage - Input (Max) [Max]	26.4 V
Voltage - Input (Min) [Min]	21.6 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

TES 2 Series

Part	Features	Applications	Voltage - Input (Min) [Min]	Efficiency	Voltage - Isolation	Number of Outputs	Power (Watts)	Package / Case	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Mounting Type	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TES 2-2422M	SCP	ITE (Commercial) Medical	21.6 V	74 %	4000 V	2	2 W	16-SMD Module 6 Leads	-12 V	80 ¯C	-25 °C	26.4 V	83 mA	83 mA	Surface Mount	Isolated Module	9.3 mm	0.36 in	0.94 in	0.54 "	13.7 mm	24 mm	12 V
Traco Power TES 2-1223H	SCP	ITE (Commercial)	10.8 V	80 %	1.5 kV	2	2 W	10-SMD Module 6 Leads	-15 V	85 °C	-40 °C	13.2 V			Surface Mount	Isolated Module							15 V	66 mA
Traco Power TES 2N-2423	SCP	ITE (Commercial)	18 V	80 %	1.5 kV	2	2 W	16-SMD Module 6 Leads	-15 V	85 °C	-40 °C	36 V		65 mA	Surface Mount	Isolated Module	9.3 mm	0.36 in	0.94 in	0.54 "	13.7 mm	24 mm	15 V	65 mA
Traco Power TES 2N-2411	SCP	ITE (Commercial)	18 V	77 %	1.5 kV	1	2 W	16-SMD Module 6 Leads		85 °C	-40 °C	36 V			Surface Mount	Isolated Module	9.3 mm	0.36 in	0.94 in	0.54 "	13.7 mm	24 mm	5 V		400 mA
Traco Power TES 2-1222H	SCP	ITE (Commercial)	10.8 V	80 %	1.5 kV	2	2 W	10-SMD Module 6 Leads	-12 V	85 °C	-40 °C	13.2 V	83 mA	83 mA	Surface Mount	Isolated Module							12 V
Traco Power TES 2-0511M	SCP	ITE (Commercial) Medical	5 V	66 %	4000 V	1	2 W	16-SMD Module 6 Leads		80 ¯C	-25 °C	5.5 V			Surface Mount	Isolated Module	9.3 mm	0.36 in	0.94 in	0.54 "	13.7 mm	24 mm	5 V		400 mA
Traco Power TES 2-2423M	SCP	ITE (Commercial) Medical	21.6 V	75 %	4000 V	2	2 W	16-SMD Module 6 Leads	-15 V	80 ¯C	-25 °C	26.4 V			Surface Mount	Isolated Module	9.3 mm	0.36 in	0.94 in	0.54 "	13.7 mm	24 mm	15 V	66 mA
Traco Power TES 2-2423H	SCP	ITE (Commercial)	21.6 V	79 %	1.5 kV	2	2 W	10-SMD Module 6 Leads	-15 V	85 °C	-40 °C	26.4 V			Surface Mount	Isolated Module							15 V	66 mA
Traco Power TES 2-0512H	SCP	ITE (Commercial)	4.5 V	77 %	1.5 kV	1	2 W	8-SMD Module 5 Leads		85 °C	-40 °C	5.5 V			Surface Mount	Isolated Module	8.9 mm	0.35 "	0.54 in	0.37 "	9.3 mm	13.7 mm	12 V	165 mA
Traco Power TES 2-1222M	SCP	ITE (Commercial) Medical	10.8 V	74 %	4000 V	2	2 W	16-SMD Module 6 Leads	-12 V	80 ¯C	-25 °C	13.2 V	83 mA	83 mA	Surface Mount	Isolated Module	9.3 mm	0.36 in	0.94 in	0.54 "	13.7 mm	24 mm	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.18
		10	$ 13.04
		25	$ 12.61
		50	$ 12.29
		100	$ 11.98
		250	$ 11.59
		500	$ 11.29

Description

General part information

TES 2 Series

Isolated Module DC DC Converter 2 Output 15V -15V 66mA, 66mA 21.6V - 26.4V Input
