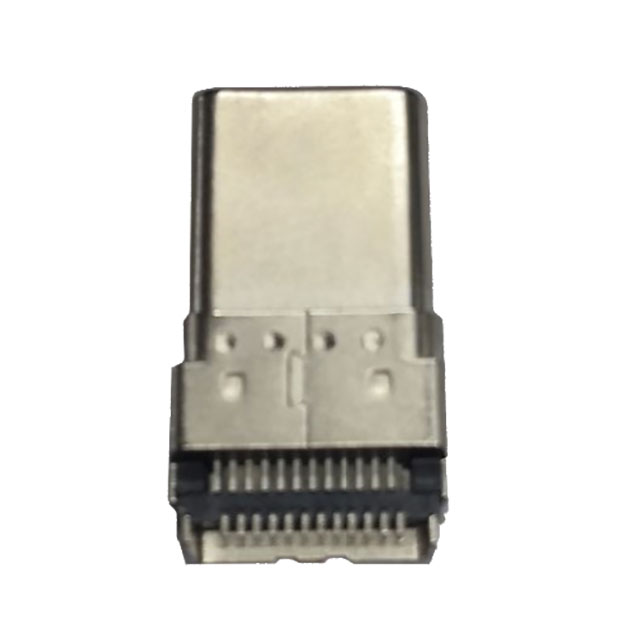

CU3024PAAHLR001-NH
ActiveCvilux USA
USB TYPE C 24 CIRCUITS PLUG STAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CU3024PAAHLR001-NH |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Gender | Plug |
| Insulation Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.02 | |
| 10 | $ 1.54 | |||
| 25 | $ 1.38 | |||
| 50 | $ 1.28 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.07 | |||
| 500 | $ 1.00 | |||
| Tape & Reel (TR) | 1000 | $ 0.93 | ||
| 2000 | $ 0.86 | |||
| 3000 | $ 0.83 | |||
| 5000 | $ 0.79 | |||
| 7000 | $ 0.77 | |||
| 10000 | $ 0.74 | |||
Description
General part information
CU3024 Series
USB-C (USB TYPE-C) Plug Connector 24 Position Free Hanging (In-Line)
