XMC4500F144K768ACXQMA1
ActiveIC MCU 32BIT 768KB FLASH 144LQFP
Deep-Dive with AI
Search across all available documentation for this part.
XMC4500F144K768ACXQMA1
ActiveIC MCU 32BIT 768KB FLASH 144LQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XMC4500F144K768ACXQMA1 |
|---|---|
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Data Converters | D/A 2x12b, A/D 32x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 91 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

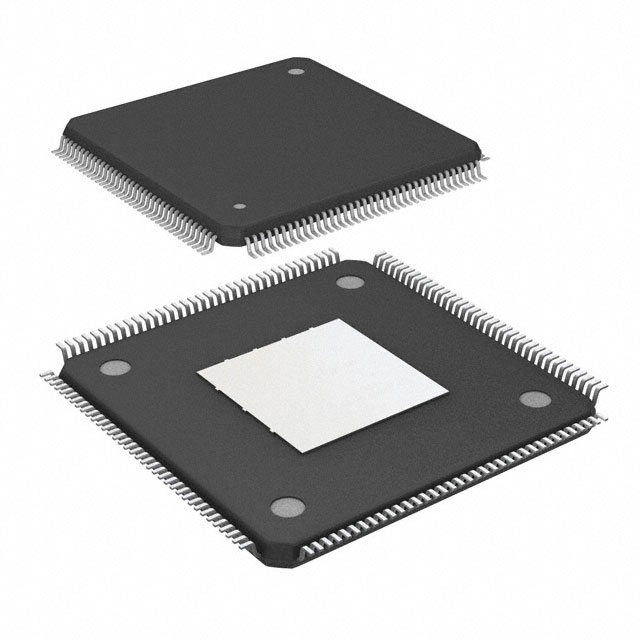

| Package / Case | 144-LQFP Exposed Pad |
| Program Memory Size | 768 KB |
| Program Memory Type | FLASH |
| RAM Size | 160 K |
| Speed | 120 MHz |
| Supplier Device Package | PG-LQFP-144-13 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.63 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3.13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 360 | $ 9.57 | |
Description
General part information
XMC4500 Series
XMC4500 combines Infineon's leading-edge peripheral set with an industry-standardARM® Cortex®-M4 core resulting in a power pack for energy-efficient industrial applications.XMC4500 controllers feature a configurable peripheral set that allow to tailor the device to specific application needs. To capitalize fully on this flexibility, Infineon offers an industry-proven development environment DAVE™ that greatly eases SW development. DAVE™ 3 hosts a graphical user interface, low-level drivers, application libraries, an auto code generation engine and interfaces to generic or customer-selected development tools.
