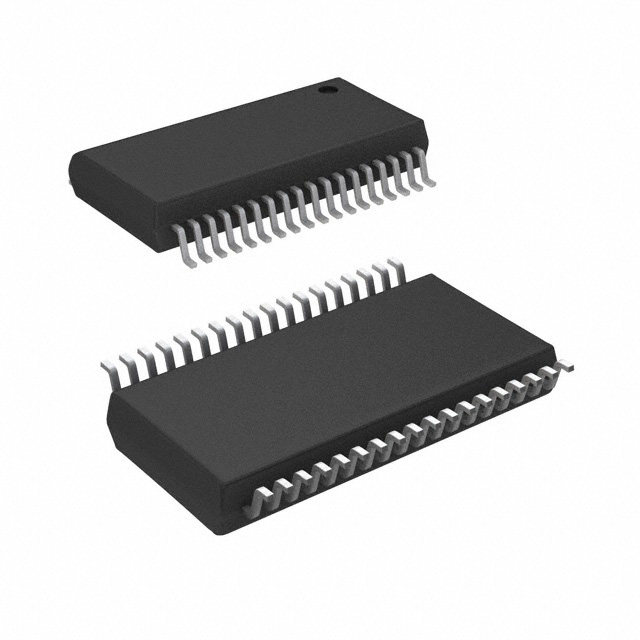

UCC5620MWPTR

Obsolete

Texas Instruments

IC SCSI 27-LINE TERM 36-SSOP

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC SCSI 27-LINE TERM 36-SSOP

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Package / Case [custom]	Package / Case	Package / Case [custom]	Mounting Type	Number of Terminations	Type	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [y]	Package / Case [y]
Texas Instruments UCC5621MWP	44-SSOP	0.295 in	44-BSOP	7.5 mm	Surface Mount	27	SCSI	70 °C
Texas Instruments UCC5628FQP	48-LQFP (7x7)		48-LQFP		Surface Mount	14	LVD SCSI SE	70 °C	5.25 V	2.7 V
Texas Instruments UCC5629FQP	48-LQFP (7x7)		48-LQFP		Surface Mount	14	LVD SCSI SE	70 °C	5.25 V	2.7 V
Texas Instruments UCC5628FQPTR	48-LQFP (7x7)		48-LQFP		Surface Mount	14	LVD SCSI SE	70 °C	5.25 V	2.7 V
Texas Instruments UCC5622MWP	44-SSOP	0.295 in	44-BSOP	7.5 mm	Surface Mount	27	SCSI	70 °C
Texas Instruments UCC5620MWPTR	36-SSOP		36-BSOP		Surface Mount	27	SCSI	70 °C			0.295 in	7.5 mm
Texas Instruments UCC5629FQPG4	48-LQFP (7x7)		48-LQFP		Surface Mount	14	LVD SCSI SE	70 °C	5.25 V	2.7 V
Texas Instruments UCC5629FQPTR	48-LQFP (7x7)		48-LQFP		Surface Mount	14	LVD SCSI SE	70 °C	5.25 V	2.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCSI Terminator 27 Terminations 36-SSOP
