VPDR302W102K1GF001E

Active

JOHANSON DIELECTRICS

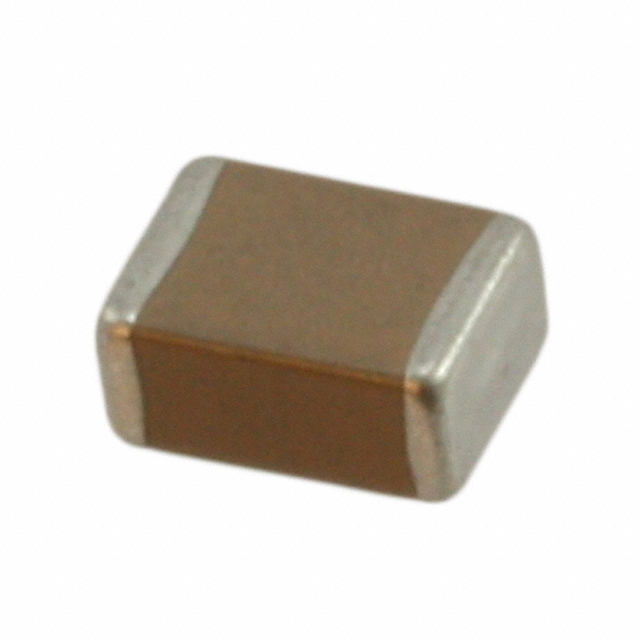

CAP CER 1000PF 3KV X7R 1812

Search across all available documentation for this part.

Active

JOHANSON DIELECTRICS

CAP CER 1000PF 3KV X7R 1812

Technical Specifications

Parameters and characteristics for this part

Specification	VPDR302W102K1GF001E

Applications	SMPS Filtering, Boardflex Sensitive
Capacitance	0.001 µF
Features	High Voltage, Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1812 (4532 Metric)
Size / Dimension [x]	0.177 in
Size / Dimension [x]	4.5 mm
Size / Dimension [y]	3.18 mm
Size / Dimension [y]	0.125 in
Temperature Coefficient	X7R
Thickness (Max) [Max]	2.8 mm
Thickness (Max) [Max]	0.11 in
Tolerance	10 %

Part	Applications	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Capacitance	Features
JOHANSON DIELECTRICS VPDR302W102K1GF001E	Boardflex Sensitive SMPS Filtering	X7R	-55 °C	125 °C	MLCC Surface Mount	10 %	2.8 mm	0.11 in	3.18 mm	0.177 in	4.5 mm	0.125 in	1812 (4532 Metric)	0.001 µF	High Voltage Soft Termination

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1000 pF ±10% 3000V (3kV) Ceramic Capacitor X7R 1812 (4532 Metric)
