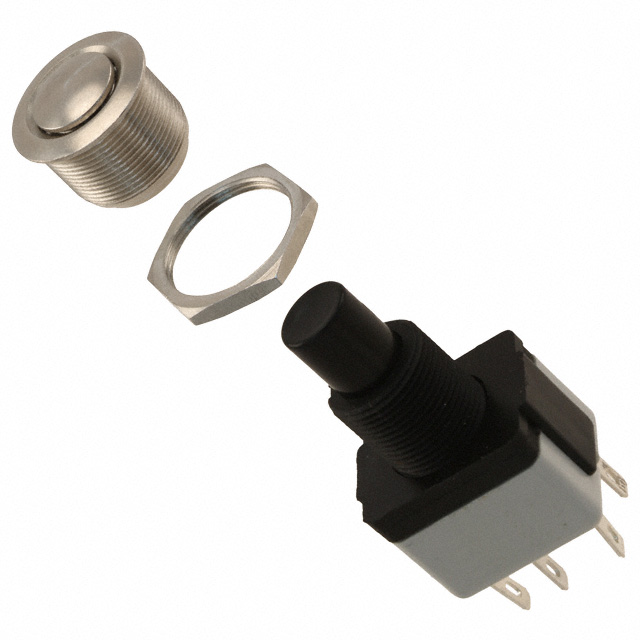

AV044746A200

Active

APEM

SWITCH PUSHBUTTON DPDT 6A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSHBUTTON DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	AV044746A200

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	6 A
Electrical Life	10000 Cycles
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22.2 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal
Voltage Rating - AC	125 V

Part	Ingress Protection	Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Switch Function	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type	Circuit	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Mounting Type	Mechanical Life
APEM AV044746A240	IP54 - Dust Protected Water Resistant	Anti-Vandal	10000 Cycles	55 °C	-20 C	6 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	22.2 mm	Button Round	DPDT	No Marking	125 V	Silver	Panel Mount Front	100000 Cycles
APEM AV044746A200	IP54 - Dust Protected Water Resistant	Anti-Vandal	10000 Cycles	55 °C	-20 C	6 A	On-On	0.11 in	Quick Connect Solder	2.8 mm	22.2 mm	Button Round	DPDT	No Marking	125 V	Silver	Panel Mount Front	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Anti-Vandal Panel Mount, Front

Technical documentation and resources

No documents available
