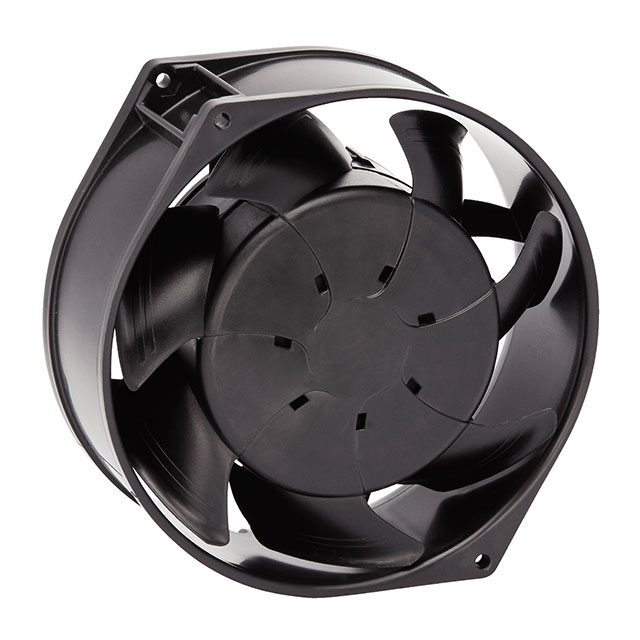

W1G130-AA49-01

Active

ebm-papst Inc.

AC FAN, AXIAL CONSTRUCTION, 0.38A, 115V, 24W,

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC FAN, AXIAL CONSTRUCTION, 0.38A, 115V, 24W,

Technical Specifications

Parameters and characteristics for this part

Specification	W1G130-AA49-01

Approval Agency	VDE, UL, CSA, EAC
Bearing Type	Ball
Current Rating (Amps)	0.38 A
Fan Type	Tubeaxial
Ingress Protection	IP54 - Dust Protected, Water Resistant
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polypropylene (PP)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Operating Temperature [Min]	-30 °C
Power (Watts)	24 W
RPM	3200 RPM
Size / Dimension	Round
Size / Dimension [diameter]	151 mm
Static Pressure	90.5 Pa
Static Pressure	0.363 in H2O
Voltage - Rated	115 VAC
Weight	771.1 g
Weight	1.7 lbs
Width [y]	58 mm

Part	Voltage - Rated	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Size / Dimension	Size / Dimension [diameter]	Weight	Weight	Bearing Type	Ingress Protection	Material - Frame	Material - Blade	Approval Agency	Width [y]	Power (Watts)	Static Pressure	Static Pressure	Fan Type	Current Rating (Amps)	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]
ebm-papst Inc. W1G130-AA25-01	230 VAC	-30 °C	-22 °F	70 °C	158 °F	Round	151 mm	771.1 g	1.7 lbs	Ball	IP54 - Dust Protected Water Resistant	Polypropylene (PP)	Fiberglass Reinforced Nylon Polyamide (PA)	CCC CSA EAC UL VDE	58 mm	24 W	90.5 Pa	0.363 in H2O	Tubeaxial	0.19 A	3200 RPM
ebm-papst Inc. W1G130-AA49-01	115 VAC					Round	151 mm	771.1 g	1.7 lbs	Ball	IP54 - Dust Protected Water Resistant	Polypropylene (PP)	Fiberglass Reinforced Nylon Polyamide (PA)	CSA EAC UL VDE	58 mm	24 W	90.5 Pa	0.363 in H2O	Tubeaxial	0.38 A	3200 RPM	60 °C	-30 ░C	-30 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.69
