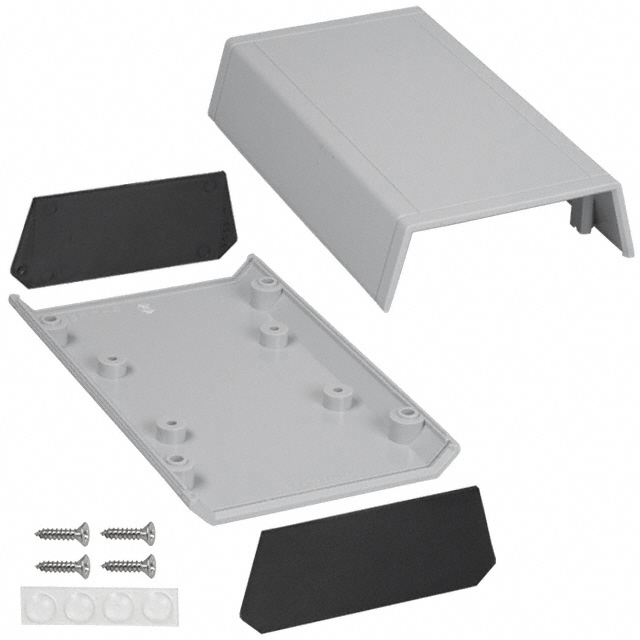

A21,GY

Active

Serpac

BOX ABS GRAY 4.25"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.25"L X 2.6"W

Technical Specifications

Parameters and characteristics for this part

Specification	A21,GY

Area (L x W)	11.2 in²
Area (L x W)	72 cm²
Color	Gray
Container Type	Box
Design	Split Sides and End Panel(s)
Features	PCB Supports
Height [z]	1.12 "
Height [z]	28.45 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	4.25 in
Size / Dimension [x]	107.95 mm
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	1.78 mm
Thickness	0.07 in
Weight	0.101 lb
Weight	45.81 g

Part	Thickness	Thickness	Container Type	Material Flammability Rating	Ratings	Material	Features	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Color	Weight	Weight
Serpac A21,GY	1.78 mm	0.07 in	Box	UL94 HB	IP40	Plastic ABS	PCB Supports	Split Sides and End Panel(s)	2.6 "	4.25 in	107.95 mm	66.04 mm	11.2 in²	72 cm²	1.12 "	28.45 mm	Gray	0.101 lb	45.81 g
Serpac A21,BK	1.78 mm	0.07 in	Box	UL94 HB	IP40	Plastic ABS	PCB Supports	Split Sides and End Panel(s)	2.6 "	4.25 in	107.95 mm	66.04 mm	11.2 in²	72 cm²	1.12 "	28.45 mm	Black	0.101 lb	45.81 g
Serpac A21,AL	1.78 mm	0.07 in	Box	UL94 HB	IP40	Plastic ABS	PCB Supports	Split Sides and End Panel(s)	2.6 "	4.25 in	107.95 mm	66.04 mm	11.2 in²	72 cm²	1.12 "	28.45 mm	Almond	0.101 lb	45.81 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Split Sides and End Panel(s) 4.250" L x 2.600" W (107.95mm x 66.04mm) X 1.120" (28.45mm)

Technical documentation and resources

No documents available
