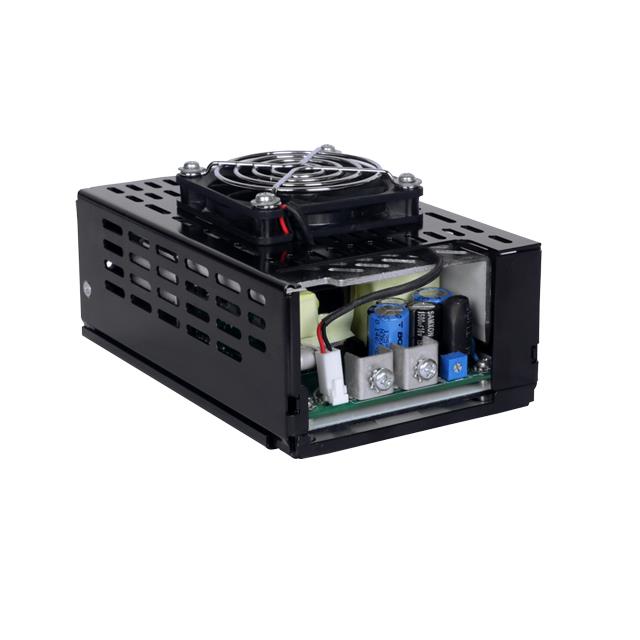

EPG500-1248-CKF

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 48V 10.41A 300(CONVECTION)W/500(FORCED AIR)W 20-PIN BOX

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 48V 10.41A 300(CONVECTION)W/500(FORCED AIR)W 20-PIN BOX

Technical Specifications

Parameters and characteristics for this part

Specification	EPG500-1248-CKF

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	10.41 A
Efficiency	94 %
Features	I2C Interface, Remote On/Off, Adjustable Output, Remote Sense, PFC, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	500 W
Power (Watts)	300 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.58 "
Size / Dimension [z]	40 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Switching Power Supplies POWERSUPPLY,EPG500-1048

Part	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Features	Current - Output 1	Applications	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Output 1	Efficiency	Voltage - Isolation	Mounting Type	Standard Number	Power (Watts)	Power (Watts)
EOS Power India Private Ltd EPG500-1248-CKF	1	90 VAC	264 VAC	Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Universal Input	10.41 A	ITE (Commercial)	CE	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	Enclosed	48 V	94 %	4000 V	Chassis Mount	62368-1	500 W	300 W
EOS Power India Private Ltd EPG500-2230-CK	1	90 VAC	264 VAC	Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Standby Output Universal Input	16.67 A	ITE (Commercial)	CE	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	Enclosed	30 V	94 %	4000 V	Chassis Mount	62368-1	500 W	300 W
EOS Power India Private Ltd EPG500-1048	1	90 VAC	264 VAC	Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Universal Input	10.41 A	ITE (Commercial)	CE	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	Open Frame	48 V	94 %	4000 V	Chassis Mount	62368-1	500 W	300 W
EOS Power India Private Ltd EPG500-2212-L	1	90 VAC	264 VAC	Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Standby Output Universal Input	33.33 A	ITE (Commercial)	CE	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	Open Frame	12 V	94 %	4000 V	Chassis Mount	62368-1	400 W	240 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	42	$ 344.31

General part information

Switching Power Supplies POWERSUPPLY,EPG500-1048
