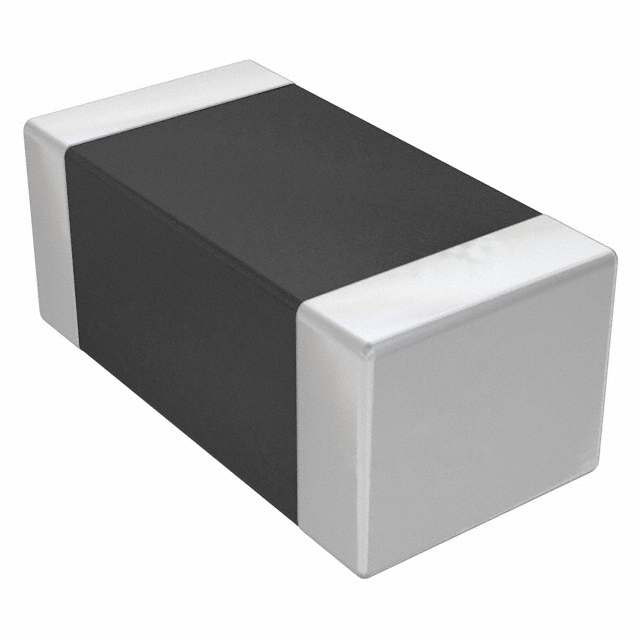

AMCV-1206H-560-T
ActiveAbracon LLC
VARISTOR 68V 250A 1206 / TAPE & REEL (TR) ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMCV-1206H-560-T
ActiveAbracon LLC
VARISTOR 68V 250A 1206 / TAPE & REEL (TR) ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMCV-1206H-560-T |
|---|---|
| Capacitance @ Frequency | 250 pF |
| Current - Surge | 250 A |
| Energy | 1 J |
| Maximum AC Volts [Max] | 40 V |
| Maximum DC Volts [Max] | 56 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -55 C |
| Package / Case | 1206 (3216 Metric) |
| Varistor Voltage (Max) [Max] | 75 V |
| Varistor Voltage (Min) [Min] | 61 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.71 | |
| 10 | $ 1.05 | |||
| 25 | $ 0.88 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 1.71 | ||
| 10 | $ 1.05 | |||
| 25 | $ 0.88 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.49 | |||
| Tape & Reel (TR) | 3000 | $ 0.43 | ||
| 6000 | $ 0.40 | |||
| 9000 | $ 0.39 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.26 | |
| 5000 | $ 0.25 | |||
| 10000 | $ 0.23 | |||
| 20000 | $ 0.22 | |||
| 30000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
AMCV-1206H Series
68 V 250 A Varistor 1 Circuit Surface Mount, MLCV 1206 (3216 Metric)
