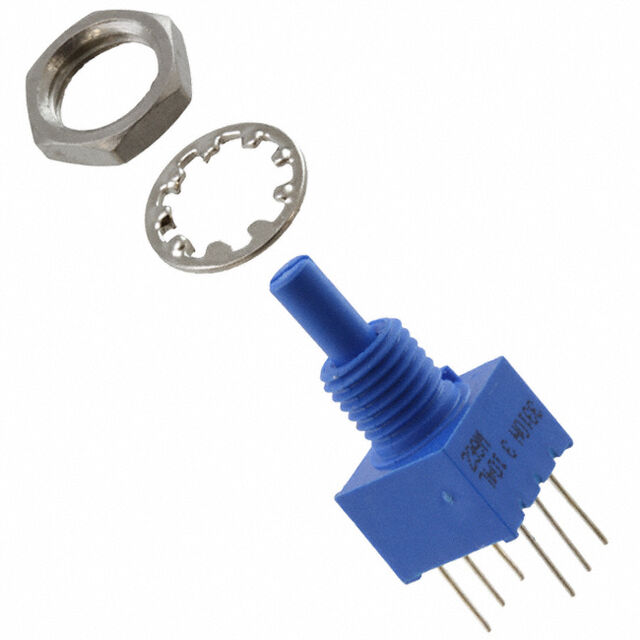

3310H-003-104L

Active

Bourns Inc.

ROTARY POTENTIOMETER, 100 KOHM, 1 TURNS, LINEAR, 250 MW, ± 20%, 3310 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3310H-003-104L

Active

Bourns Inc.

ROTARY POTENTIOMETER, 100 KOHM, 1 TURNS, LINEAR, 250 MW, ± 20%, 3310 SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3310H-003-104L

Actuator Diameter [diameter]	0.125 in
Actuator Diameter [diameter]	3.18 mm
Actuator Length	12.7 mm
Actuator Length [x]	0.5 in
Actuator Type	Slotted
Adjustment Type	Top Adjustment
Built in Switch	Rotary, SPST
Bushing Thread	1/4-32
Features	Sealed
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance (Ohms)	100 kOhms
Resistive Material	Conductive Plastic
Rotation	300 ░
Size - Body [x]	9.75 mm
Size - Body [x]	0.384 in
Size - Body [y]	0.375 in
Size - Body [y]	9.53 mm
Taper	Linear
Temperature Coefficient	1000 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

3310H Series

Part	Number of Gangs	Actuator Type	Tolerance	Rotation	Temperature Coefficient	Power (Watts)	Power (Watts)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [x]	Bushing Thread	Built in Switch	Termination Style	Taper	Resistive Material	Number of Turns	Resistance (Ohms)	Actuator Length [x]	Actuator Length	Adjustment Type	Features	Resistance (Ohms)	Actuator Length [z]	Actuator Length [z]	Mounting Type
Bourns Inc. 3310H-003-104L	1	Slotted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in	1/4-32	Rotary SPST	PC Pins	Linear	Conductive Plastic	1	100 kOhms	0.5 in	12.7 mm	Top Adjustment	Sealed
Bourns Inc. 3310H-001-503L	2	Slotted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in	1/4-32		PC Pins	Linear	Conductive Plastic	1	50 kOhms	0.5 in	12.7 mm	Top Adjustment	Sealed
Bourns Inc. 3310H-003-105L	1	Slotted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in	1/4-32	Rotary SPST	PC Pins	Linear	Conductive Plastic	1		0.5 in	12.7 mm	Top Adjustment	Sealed	1M
Bourns Inc. 3310H-001-105L	2	Slotted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in	1/4-32		PC Pins	Linear	Conductive Plastic	1		0.5 in	12.7 mm	Top Adjustment	Sealed	1M
Bourns Inc. 3310H-001-202L	2	Slotted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in	1/4-32		PC Pins	Linear	Conductive Plastic	1		0.5 in	12.7 mm	Top Adjustment	Sealed	2k
Bourns Inc. 3310H-104-104	1	Flatted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in	1/4-32	Rotary SPST	PC Pins	Linear	Conductive Plastic	1	100 kOhms	0.5 in	12.7 mm	Top Adjustment	Sealed
Bourns Inc. 3310H-013-103L	1	Slotted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in	1/4-32	Rotary SPST	PC Pins	Linear	Conductive Plastic	1				Top Adjustment	Sealed	10k	19.05 mm	0.75 in
Bourns Inc. 3310H-003-503L	1	Slotted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in	1/4-32	Rotary SPST	PC Pins	Linear	Conductive Plastic	1	50 kOhms	0.5 in	12.7 mm	Top Adjustment	Sealed
Bourns Inc. 3310H-004-202L	2	Slotted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in	1/4-32	Rotary SPST	PC Pins	Linear	Conductive Plastic	1		0.5 in	12.7 mm	Top Adjustment	Sealed	2k
Bourns Inc. 3310H-126-103L	1	Flatted	20 %	300 ░	1000 ppm/°C	0.25 W	250 mW	0.125 in	3.18 mm	0.375 in	9.53 mm	9.75 mm	0.384 in		Rotary SPST	PC Pins	Linear	Conductive Plastic	1				Top Adjustment	Sealed	10k	5.59 mm	0.22 in	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.33
		10	$ 10.69
		25	$ 9.78
		50	$ 9.14
		100	$ 8.54
		250	$ 7.80
		500	$ 7.28
		1000	$ 7.12
Newark	Each	1	$ 15.64
		10	$ 12.57
		25	$ 12.28
		50	$ 11.99
		100	$ 10.94
		250	$ 10.51
		500	$ 10.24

Description

General part information

3310H Series

The Bourns 3310H series are through hole, panel control potentiometer. These potentiometers are single turn which is designed for frequent adjustment application. These devices are available in plastic or metal bushing and plastic shaft combination.
