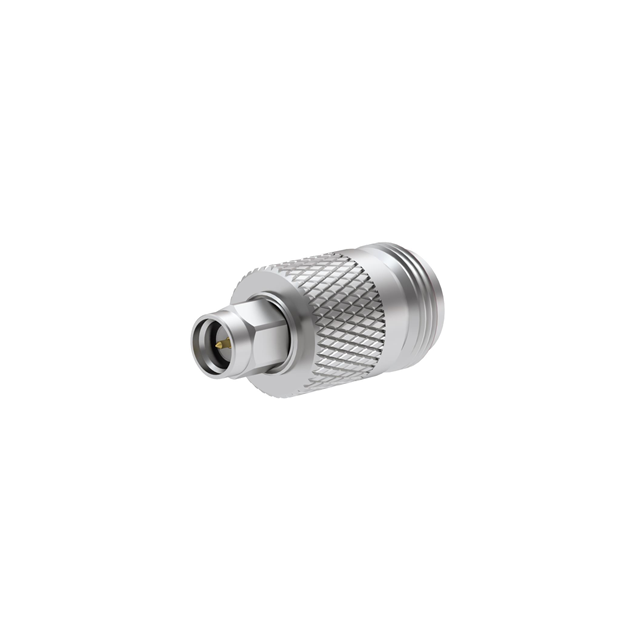

R191327000

Active

Radiall USA, Inc.

N FEMALE - SMA MALE STRAIGHT ADA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N FEMALE - SMA MALE STRAIGHT ADA

Technical Specifications

Parameters and characteristics for this part

Specification	R191327000

Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass, Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Mounting Type	Style	Body Finish	Convert From (Adapter End)	Impedance	Convert To (Adapter End)	Center Contact Material	Frequency - Max [Max]	Adapter Type	Dielectric Material	Body Material	Conversion Type	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Mating Cycles
Radiall USA, Inc. R191329000	Free Hanging (In-Line)	Straight	Nickel	N Plug Male Pin	50 Ohms	Female Socket SMA Jack	Beryllium Copper	11 GHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	Brass	Between Series	Gold	155 °C	-55 °C
Radiall USA, Inc. R191325000	Free Hanging (In-Line)	Straight	Nickel	SMA Plug Male Pin	50 Ohms	Male Pin N Plug	Brass	11 GHz	Plug to Plug	Polytetrafluoroethylene (PTFE)	Brass	Between Series	Gold	155 °C	-55 °C	Male to Male	500
Radiall USA, Inc. R191327000	Free Hanging (In-Line)	Straight	Nickel	SMA Plug Male Pin	50 Ohms	Female Socket N Jack	Beryllium Copper	11 GHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Between Series	Gold	155 °C	-55 °C		500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
