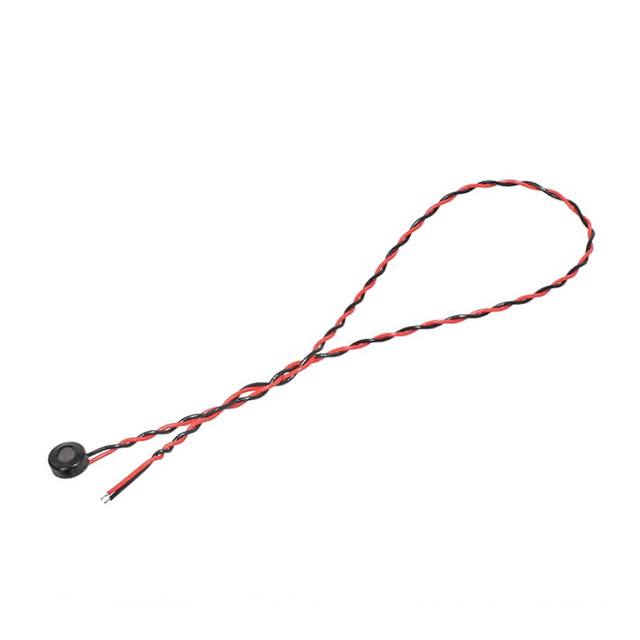

CMEJ-4618-42-L120
ActiveCUI Devices
MIC COND ANLG OMNI -42DB 0.181"D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMEJ-4618-42-L120
ActiveCUI Devices
MIC COND ANLG OMNI -42DB 0.181"D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMEJ-4618-42-L120 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 2 mm |
| Height (Max) [Max] | 0.079 in |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 0.181 in |
| Size / Dimension [diameter] | 4.6 mm |
| Termination | Wire Leads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.75 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.50 | |||
| 300 | $ 0.45 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.41 | |||
| 5000 | $ 0.36 | |||
Description
General part information
CMEJ-4618 Series
100 Hz ~ 10 kHz Analog Microphone Electret Condenser Omnidirectional (-42dB ±3dB @ 94dB SPL) Wire Leads
