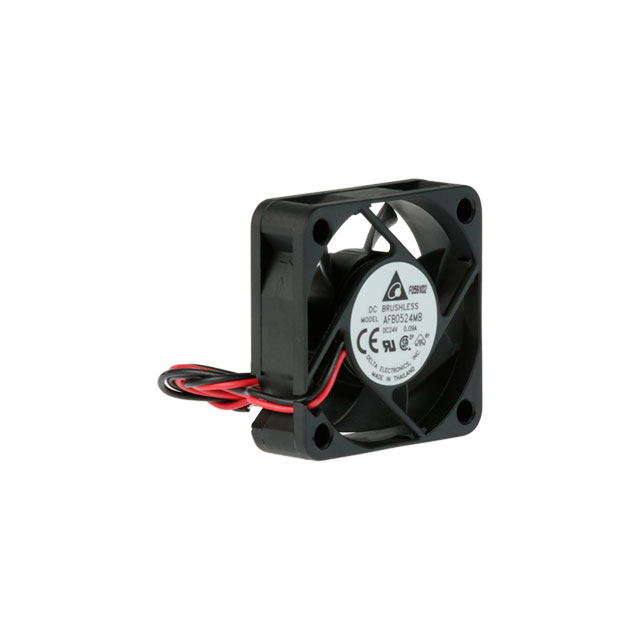

AFB0524MB

Active

Delta Electronics

FAN AXIAL 50X15MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 50X15MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Static Pressure	Static Pressure	Termination	Size / Dimension [z]	Size / Dimension [x]	Width [x]	Voltage Range [Max]	Voltage Range [Min]	Fan Type	RPM	Bearing Type	Noise	Weight	Weight	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Air Flow	Air Flow	Approval Agency	Material - Frame	Power (Watts)	Lifetime @ Temp.	Current Rating (Amps)	Features	Ingress Protection	Width [y]
Delta Electronics AFB0524MB	44.8 Pa	0.18 in H2O	2 Wire Leads	50 mm	50 mm	15 mm	27.6 VDC	14 VDC	Tubeaxial	4800 RPM	Ball	28 dB	0.071 lb	32.21 g	Plastic	70 °C	70 °C	-10 °C	-10 °C	24 VDC	0.347 m³/min	12.4 CFM	CE CSA UL VDE	Plastic	1.44 W	70000 Hrs	60 mA
Delta Electronics AFB0524HB	59.8 Pa	0.24 in H2O	2 Wire Leads	50 mm	50 mm	15 mm	27.6 VDC	14 VDC	Tubeaxial	5600 RPM	Ball	32 dB	0.071 lb	32.21 g	Plastic	70 °C	70 °C	-10 °C	-10 °C	24 VDC			CE CSA UL VDE	Plastic	1.68 W	70000 Hrs	70 mA	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0524VHD-TZW5	75.5 Pa	0.303 in H2O	2 Wire Leads	50 mm	50 mm		27.6 VDC	14 VDC	Tubeaxial	7000 RPM	Ball	40.5 dB(A)	0.085 lb	38.56 g	Plastic	70 °C	70 °C	-10 °C	-10 °C	24 VDC	0.568 mł/min	20.3 CFM	CE CSA UL VDE	Plastic	2.4 W	70000 Hrs	100 mA		IP55 - Dust Protected Water Resistant	20 mm
Delta Electronics AFB0524HHD	63.3 Pa	0.254 in H2O	2 Wire Leads	50 mm	50 mm		27.6 VDC	14 VDC	Tubeaxial	6400 RPM	Ball	37 dB	0.085 lb	38.56 g	Plastic	70 °C	70 °C	-10 °C	-10 °C	24 VDC	0.512 m³/min	18.3 CFM	CE CSA UL VDE	Plastic	2.16 W	70000 Hrs	0.09 A			20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 50mm L x 50mm H Ball 12.4 CFM (0.347m³/min) 2 Wire Leads
