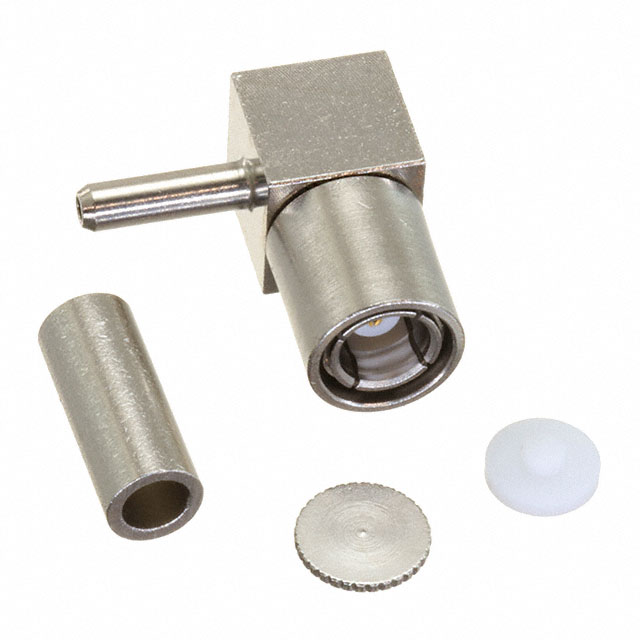

2105-7521-105

Active

Radiall USA, Inc.

SMB F RA NA CR 2/50D

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2105-7521-105

Active

Radiall USA, Inc.

SMB F RA NA CR 2/50D

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2105-7521-105

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

2105-7521 Series

Part	Center Contact Material	Mounting Type	Cable Group	Housing Color	Center Contact Plating	Connector Style	Connector Type	Body Material	Dielectric Material	Impedance	Contact Termination	Body Finish	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Number of Ports	Fastening Type	Voltage Rating	Mating Cycles	Insertion Loss	Cable Group
Radiall USA, Inc. 2105-7521-003	Beryllium Copper	Free Hanging (In-Line) Right Angle	179 316 RG-174	Silver	Gold	SMB	Female Socket Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Crimp	Nickel	4 GHz	-65 ░C	165 °C	Crimp	1	Snap-On	335 V	500
Radiall USA, Inc. 2105-7521-002	Beryllium Copper	Free Hanging (In-Line) Right Angle	RG-178	Silver	Gold	SMB	Female Socket Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Crimp	Nickel	4 GHz	-65 ░C	165 °C	Crimp	1	Snap-On	250 VDC	500	0.6 dB	196
Radiall USA, Inc. 2105-7521-005	Beryllium Copper	Free Hanging (In-Line) Right Angle	RD-178 196 Double Braid	Silver	Gold	SMB	Female Socket Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Crimp	Nickel	4 GHz	-65 ░C	165 °C	Crimp	1	Snap-On	250 VDC	500	0.6 dB
Radiall USA, Inc. 2105-7521-019	Beryllium Copper	Free Hanging (In-Line) Right Angle	RD-316	Silver	Gold	SMB	Female Socket Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Crimp	Nickel	4 GHz	-65 ░C	165 °C	Crimp	1	Snap-On	335 V	500
Radiall USA, Inc. 2105-7521-105	Beryllium Copper	Free Hanging (In-Line) Right Angle	RG-178	Silver	Gold	SMB	Female Socket Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Crimp	Nickel	4 GHz	-65 ░C	165 °C	Crimp	1	Snap-On	250 VDC	500
Radiall USA, Inc. 2105-7521-025	Beryllium Copper	Free Hanging (In-Line) Right Angle	RG-178 Double Braid	Silver	Gold	SMB	Female Socket Plug	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	Crimp	Nickel	4 GHz	-65 ░C	165 °C	Crimp	1	Snap-On	250 VDC	500	0.6 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.30
		10	$ 17.18
		25	$ 15.56
		50	$ 14.45
		100	$ 13.46
		250	$ 12.28
		500	$ 11.49

Description

General part information

2105-7521 Series

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
