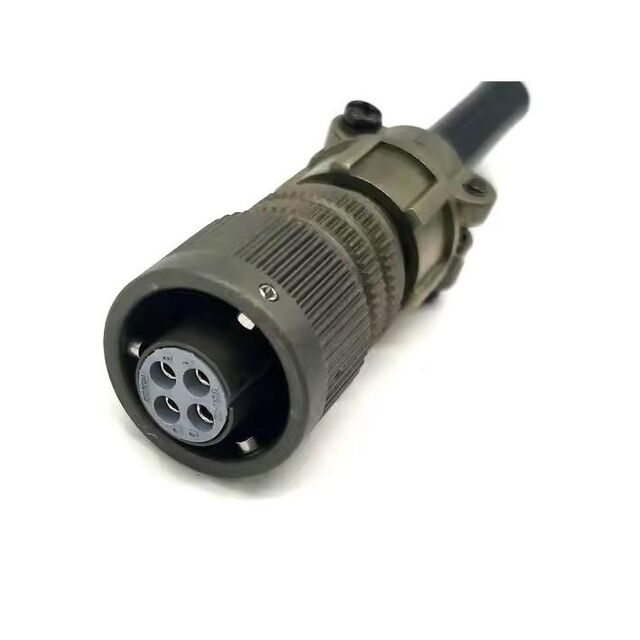

MS27467T13B98P

Active

Souriau-Sunbank by Eaton

38999 SERIES 1 ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

MS27467T13B98P

Active

Souriau-Sunbank by Eaton

38999 SERIES 1 ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467T13B98P

Applications	Aerospace, Aviation, Military
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Material	Aluminum
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

MS27467T13B Series

Part	Grade	Contact Shape	Mounting Type	Fastening Type	Shell Finish	Ingress Protection	Shell Size, MIL	Shell Size - Insert	Number of Positions	Shielding	Contact Size	Features	Housing Color	Type	Note	Orientation	Qualification	Shell Material	Connector Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Current Rating (Amps)	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Mating	Primary Material	Material Flammability Rating	Termination	Contact Material	Color
Souriau-Sunbank by Eaton MS27467T13B4A	Military	Circular	Free Hanging (In-Line)	Bayonet Lock	Cadmium	Environment Resistant	C	13-4	4	Shielded	16	Coupling Nut	Olive	For Male Pins	Contacts Not Included	N	MIL-DTL-38999 Series I	Aluminum Alloy	Plug Housing	Crimp	-65 ░C	347 °F	Thermoplastic
Souriau-Sunbank by Eaton MS27467T13B35P
Souriau-Sunbank by Eaton MS27467T13B4B	Military	Circular	Free Hanging (In-Line)	Bayonet Lock	Cadmium	Environment Resistant	C	13-4	4	Shielded	16	Coupling Nut	Olive	For Female Sockets	Contacts Not Included	N	MIL-DTL-38999 Series I	Aluminum Alloy	Plug Housing	Crimp	-65 ░C	347 °F	Thermoplastic
Souriau-Sunbank by Eaton MS27467T13B4S
Souriau-Sunbank by Eaton MS27467T13B4P-LC
Souriau-Sunbank by Eaton MS27467T13B35A	Military	Circular	Free Hanging (In-Line)	Bayonet Lock	Cadmium	Environment Resistant	C		22 positions	Shielded		Coupling Nut	Olive	For Male Pins	Contacts Not Included	N	MIL-DTL-38999 Series I	Aluminum Alloy	Plug Housing	Crimp	-65 ░C	347 °F	Thermoplastic	22D	35	13
Souriau-Sunbank by Eaton MS27467T13B4S-LC
Souriau-Sunbank by Eaton MS27467T13B35B	Military	Circular	Free Hanging (In-Line)	Bayonet Lock	Cadmium	Environment Resistant	C		22 positions	Shielded		Coupling Nut	Olive	For Female Sockets	Contacts Not Included	N	MIL-DTL-38999 Series I	Aluminum Alloy	Plug Housing	Crimp	-65 ░C	347 °F	Thermoplastic	22D	35	13
Souriau-Sunbank by Eaton MS27467T13B98P	Military		Free Hanging (In-Line)	Bayonet Lock		Environment Resistant			10	Shielded		Coupling Nut				N	MIL-DTL-38999 Series I	Aluminum	Male Pins Plug		-65 ░C	347 °F	Thermoplastic				7.5 A	Aerospace Aviation Military	1.27 µm	50 µin	500 VAC	Gold	Metal	UL94 V-0	Crimp	Copper Alloy	Olive Drab
Souriau-Sunbank by Eaton MS27467T13B4P	Military		Free Hanging (In-Line)	Bayonet Lock	Olive Green Cadmium	Environment Resistant	C	13-4	4	Shielded		Coupling Nut				N	MIL-DTL-38999 Series I	Aluminum Alloy	Male Pins Plug		-65 ░C	347 °F	Thermoplastic				13 A	Aviation Communication Systems Marine Medical Military	1.27 µm	50 µin		Gold	Metal		Crimp	Copper Alloy	Olive Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2	$ 111.94
		10	$ 102.99
		50	$ 94.75
		100	$ 87.17
		500	$ 80.19
	Bulk	1	$ 197.30
		10	$ 174.77
		25	$ 169.11
		50	$ 167.31

Description

General part information

MS27467T13B Series

10 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
