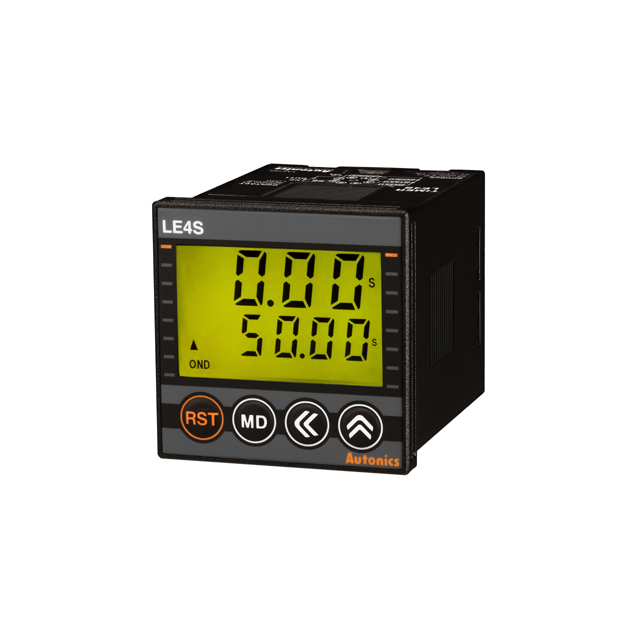

LE4SA-24-240

Active

AUTONICS

RELAY TIME DELAY 9999HR 3A 250V

Search across all available documentation for this part.

Active

AUTONICS

RELAY TIME DELAY 9999HR 3A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	LE4SA-24-240

Circuit	SPDT (1 Form C), DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 3 A
Delay Time [Max]	9999 Hrs
Delay Time [Min]	0.001 Sec
Function	Programmable (Multi-Function)
Termination Style	Plug In, 8 Pin (Octal)
Timing Adjustment Method	Up/Down Digit Keys
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Contact Rating @ Voltage	Voltage - Supply [Min]	Voltage - Supply [Max]	Circuit	Termination Style	Timing Adjustment Method	Function	Delay Time [Max]	Delay Time [Min]
AUTONICS LE4SA-24-240	3 A 250 VAC	24 VAC	240 VAC	DPDT (2 Form C) SPDT (1 Form C)	Plug In 8 Pin (Octal)	Up/Down Digit Keys	Programmable (Multi-Function)	9999 Hrs	0.001 Sec

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 107.00

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C), DPDT (2 Form C) 0.001 Sec ~ 9999 Hrs Delay 3A @ 250VAC Panel Mount
