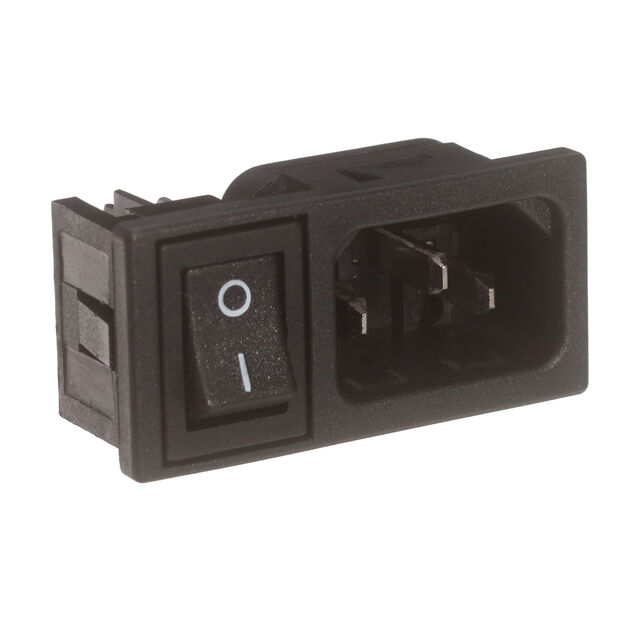

BZM27/Z0000/53A

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	BZM27/Z0000/53A

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	45.9 mm
Panel Cutout Dimensions [y]	21.3 mm
Panel Thickness	1 mm
Panel Thickness	0.039 in
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Approval Agency	Switch Features	Material Flammability Rating	Panel Thickness	Panel Thickness	Current Rating - Appliance Inlet	Connector Style	Voltage Rating - Appliance Inlet	Filter Type	Termination	Termination	Termination	Mounting Type	Panel Thickness [custom]	Panel Thickness [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
BULGIN LIMITED BZM27/Z0000/63A	Receptacle Male Blades - Module	CSA ENEC UL VDE	Illuminated Switch On-Off	UL94 V-0	1 mm	0.039 in	10 A	IEC 320-C14	250 VAC	Unfiltered - Commercial	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In
BULGIN LIMITED BZM27/Z0000/63B	Receptacle Male Blades - Module	CSA ENEC UL VDE	Illuminated Switch On-Off	UL94 V-0			10 A	IEC 320-C14	250 VAC	Unfiltered - Commercial	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	0.059 in	1.5 mm
BULGIN LIMITED BZM27/Z0000/57A	Receptacle Male Blades - Module	CSA ENEC UL VDE	Switch On-Off	UL94 V-0	1 mm	0.039 in	10 A	IEC 320-C14	250 VAC	Unfiltered - Commercial	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In
BULGIN LIMITED BZM27/Z0000/53A	Receptacle Male Blades - Module	CSA ENEC UL VDE	Switch On-Off	UL94 V-0	1 mm	0.039 in	10 A	IEC 320-C14	250 VAC	Unfiltered - Commercial	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In			21.3 mm	45.9 mm
BULGIN LIMITED BZM27/Z0000/57D	Receptacle Male Blades - Module	CSA ENEC UL VDE	Switch On-Off	UL94 V-0	3 mm	0.118 in	10 A	IEC 320-C14	250 VAC	Unfiltered - Commercial	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
