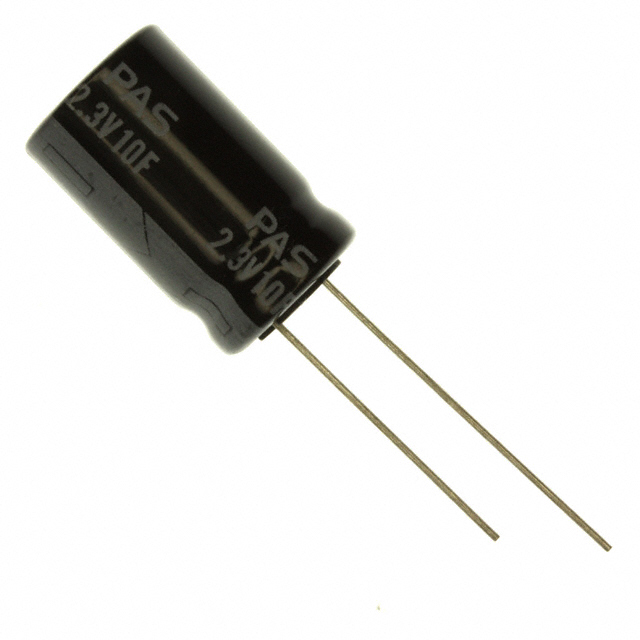

PAS1220LA2R3106

Obsolete

TAIYO YUDEN

CAP 10F 20% 2.3V T/H

Search across all available documentation for this part.

Obsolete

TAIYO YUDEN

CAP 10F 20% 2.3V T/H

Technical Specifications

Parameters and characteristics for this part

Specification	PAS1220LA2R3106

Capacitance	10 F
ESR (Equivalent Series Resistance)	200 mOhm
Height - Seated (Max) [Max] [z]	22 mm
Height - Seated (Max) [Max] [z]	0.866 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Termination	PC Pins
Tolerance	20 %
Voltage - Rated	2.3 V

Part	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Package / Case	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Mounting Type	Voltage - Rated
TAIYO YUDEN PAS1220LA2R3106	20 %	22 mm	0.866 in	200 mOhm	5 mm	0.197 in	Radial Can	PC Pins	0.492 in	12.5 mm	-25 °C	60 °C	10 F	Through Hole	2.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 F (EDLC) Supercapacitor 2.3 V Radial, Can 200mOhm
