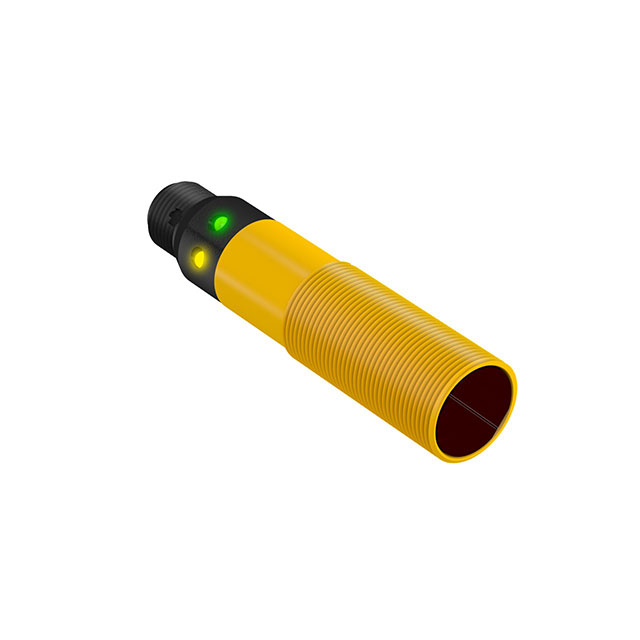

S18SP6LQ

Active

BANNER ENGINEERING

EZ-BEAM S18 SERIES: RETRO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S18SP6LQ

Active

BANNER ENGINEERING

EZ-BEAM S18 SERIES: RETRO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S18SP6LQ

Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP69K
Light Source	Infrared LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON
Response Time	3 ms
Sensing Distance	78.74 "
Sensing Distance	2 m
Sensing Method	NonPolarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

S18SP6 Series

Part	Ingress Protection	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Sensing Distance	Sensing Distance	Response Time	Connection Method	Light Source	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING S18SP6L W/30	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC	NonPolarized Retroreflective	78.74 "	2 m	3 ms	Cable	Infrared (950nm)	354.33 in	9 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6LP W/30	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC	Polarized Retroreflective	78.74 "	2 m	3 ms	Cable	Red	354.33 in	9 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6R	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Through-Beam	787.402 in	20 m	3 ms	Cable	Infrared (950nm)	78.74 in	2 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6LPQ	IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Polarized Retroreflective	78.74 "	2 m	3 ms	Connector	Red LED			-40 °C	70 °C
BANNER ENGINEERING S18SP6D	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Diffuse	3.937 in	100 mm	3 ms	Cable	Infrared	78.74 in	2 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6DL	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Diffuse	11.811 in	300 mm	3 ms	Cable	Infrared	78.74 in	2 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6FF100QP	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC	Background Suppression	3.937 in	100 mm	3 ms	Connector	Infrared			-40 °C	70 °C
BANNER ENGINEERING S18SP6LQ	IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	NonPolarized Retroreflective	78.74 "	2 m	3 ms	Connector	Infrared LED			-40 °C	70 °C
BANNER ENGINEERING S18SP6DQ	IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Diffuse	3.937 in	100 mm	3 ms	Connector	Infrared LED			-40 °C	70 °C
BANNER ENGINEERING S18SP6DLQ	IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Diffuse	11.811 in	300 mm	3 ms	Connector	Infrared LED			-40 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 71.00
Newark	Each	1	$ 72.00

Description

General part information

S18SP6 Series

Retroreflective, NonPolarized Optical Sensor 78.740" (2m) PNP - Dark-ON/Light-ON
