BT815Q-R
ActiveBridgetek Pte Ltd.
ENHANCED EVE2 GRAPHICS CONTROLLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BT815Q-R
ActiveBridgetek Pte Ltd.
ENHANCED EVE2 GRAPHICS CONTROLLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BT815Q-R |
|---|---|
| Applications | Human Machine Interfaces (HMI) |
| Interface | LED, SPI, QSPI, LCD |
| Mounting Type | Surface Mount |
| Number of I/O | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

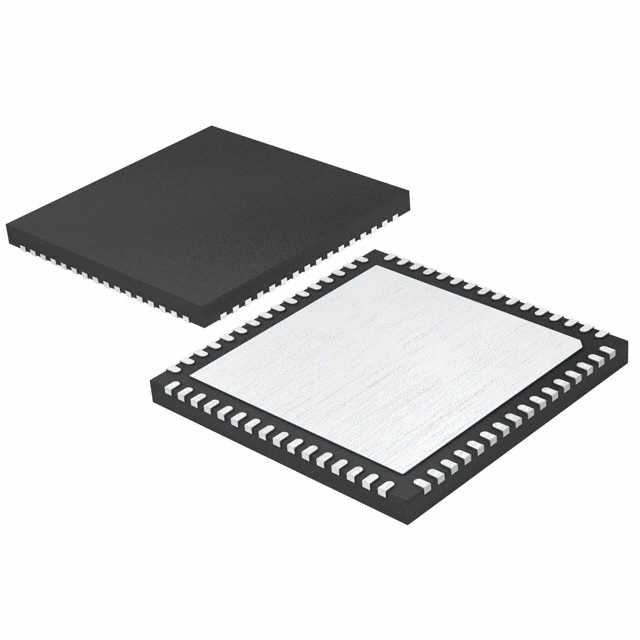

| Package / Case | 64-VFQFN Exposed Pad |
| Program Memory Type | FLASH |
| Supplier Device Package | 64-VQFN (9x9) |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 2.97 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.40 | |
| 10 | $ 7.99 | |||
| 25 | $ 7.11 | |||
| 100 | $ 6.13 | |||
| 250 | $ 5.65 | |||
| 500 | $ 5.36 | |||
| 1000 | $ 5.12 | |||
| Digi-Reel® | 1 | $ 11.40 | ||
| 10 | $ 7.99 | |||
| 25 | $ 7.11 | |||
| 100 | $ 6.13 | |||
| 250 | $ 5.65 | |||
| 500 | $ 5.36 | |||
| 1000 | $ 5.12 | |||
| Tape & Reel (TR) | 3000 | $ 5.10 | ||
Description
General part information
BT815Q Series
ENHANCED EVE2 GRAPHICS CONTROLLE
Documents
Technical documentation and resources
