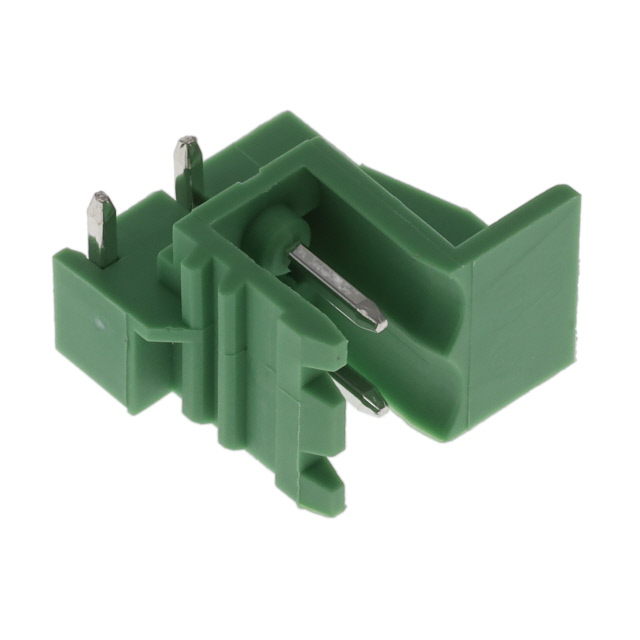

EU0270510000G

Active

Amphenol Anytek

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; MALE; PIN: 2; ON PCBS

Search across all available documentation for this part.

Active

Amphenol Anytek

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; MALE; PIN: 2; ON PCBS

Technical Specifications

Parameters and characteristics for this part

Specification	EU0270510000G

Color	Green
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - UL	20 A
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (2 Side)
Voltage - UL	300 V

Part	Current - UL	Contact Material	Voltage - UL	Mounting Type	Pitch [x]	Pitch [x]	Type	Termination Style	Header Orientation	Number of Levels	Positions Per Level	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Contact Mating Finish	Color	Number of Positions	Contact Tail Length	Contact Tail Length
Amphenol Anytek EU0410810000G	10 A	Copper	300 V	Through Hole	3.5 mm	0.138 in	Header Male Pins Shrouded (2 Side)	Solder	90° Right Angle	1	4	UL94 V-0	-40 °C	115 °C	Thermoplastic	Tin	Green	4	0.142 in	3.6 mm
Amphenol Anytek EU0310800000G	10 A	Copper	300 V	Through Hole	3.5 mm	0.138 in	Header Male Pins Shrouded (2 Side)	Solder	90° Right Angle	1	3	UL94 V-0	-40 °C	115 °C	Thermoplastic	Tin	Green		0.142 in	3.6 mm
Amphenol Anytek EU0410800000G	10 A	Copper	300 V	Through Hole	3.5 mm	0.138 in	Header Male Pins Shrouded (2 Side)	Solder	90° Right Angle	1	4	UL94 V-0	-40 °C	115 °C	Thermoplastic	Tin	Green	4	0.142 in	3.6 mm
Amphenol Anytek EU0270510000G	20 A	Copper	300 V	Through Hole	5 mm	0.197 in	Header Male Pins Shrouded (2 Side)	Solder	90° Right Angle	1	2	UL94 V-0	-40 °C	115 °C	Thermoplastic	Tin	Green	2	0.138 in	3.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole

Technical documentation and resources

No documents available
