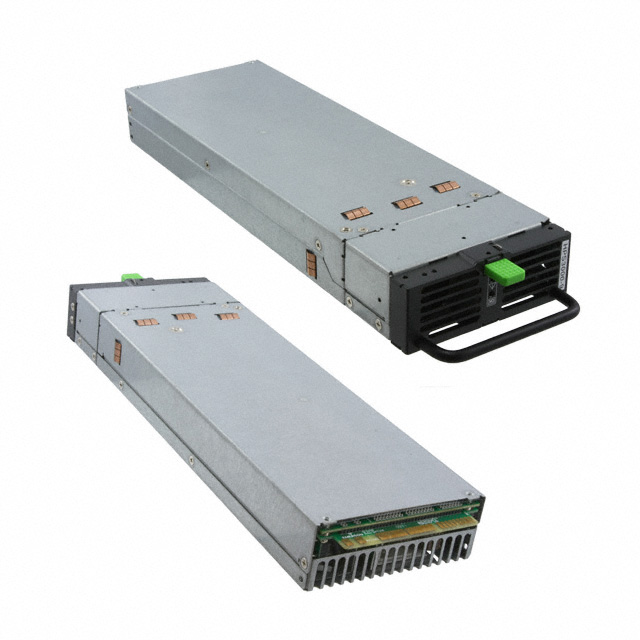

HPS3000-9

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 62.5A 3000W 64-PIN

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 62.5A 3000W 64-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	HPS3000-9

Applications	ITE (Commercial)
Approval Agency	CB
Current - Output 1	62 A
Efficiency	90 %
Features	Hot Swappable, Standby Output, I2C Interface, PFC, Load Sharing, PMBus™, Universal Input
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3000 W
Size / Dimension [x]	12.9 "
Size / Dimension [x]	327.7 mm
Size / Dimension [y]	106.7 mm
Size / Dimension [y]	4.2 "
Size / Dimension [z]	1.57 "
Size / Dimension [z]	39.9 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	48 V

Part	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Features	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Power (Watts)	Type	Minimum Load Required	Current - Output 1	Mounting Type	Voltage - Output 1	Number of Outputs
ARTESYN / Advanced Energy HPS3000-9	90 %	-10 °C	40 °C	1.57 "	12.9 "	106.7 mm	327.7 mm	39.9 mm	4.2 "	ITE (Commercial)	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Standby Output Universal Input	90 VAC	264 VAC	CB	3000 W	Front End		62 A	Rack Mount	48 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
