35HDNNS
ActiveSwitchcraft Inc.

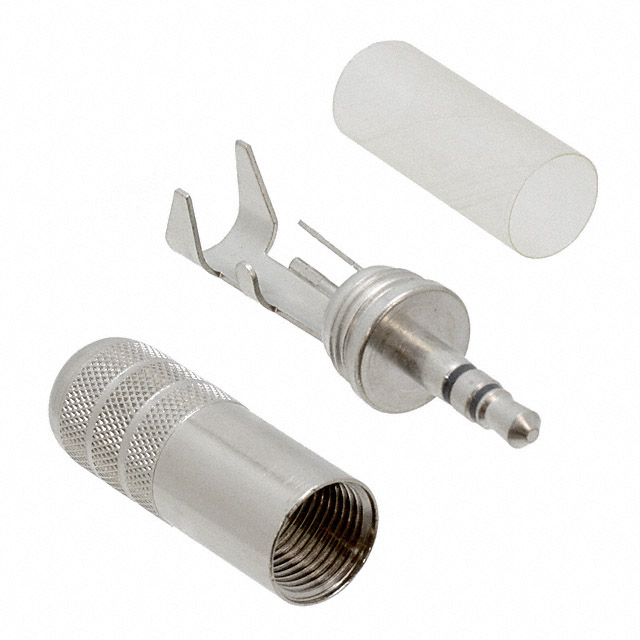

CONN PLUG STEREO 3.5MM 3COND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35HDNNS
ActiveSwitchcraft Inc.
CONN PLUG STEREO 3.5MM 3COND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 35HDNNS |
|---|---|
| Actual Diameter [diameter] | 0.138 " |
| Actual Diameter [diameter] | 3.5 mm |
| Body Color | Silver |
| Body Material | Brass |
| Cable Opening [diameter] | 0.175 in |
| Cable Opening [diameter] | 4.45 mm |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 4 A |
| Gender | Male |
| Housing Material | Brass |
| Includes | 1 Connector, 1 Insulator Tube, 1 Handle |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | False |
| Mating Length/Depth | 14.2 mm |
| Mating Length/Depth | 0.56 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.55 | |
| 10 | $ 9.64 | |||
| 25 | $ 8.71 | |||
| 50 | $ 8.08 | |||
| 100 | $ 7.51 | |||
| 300 | $ 6.72 | |||
| 500 | $ 6.39 | |||
| 1000 | $ 5.98 | |||
Description
General part information
35HDNN Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder
