AS5600-SO_POTUINO

Active

ams-OSRAM USA INC.

DEV SHIELD AS5600 POTUINO

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

DEV SHIELD AS5600 POTUINO

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Mounting Type	Actuator Type	Output Signal	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Voltage - Supply	For Measuring	Technology	Output	Sensor Type	Utilized IC / Part	Supplied Contents	Sensing Range	Interface
ams-OSRAM USA INC. AS5600-ASOM SOIC8 LF T&RDP	Gull Wing	Surface Mount	External Magnet Not Included	Clockwise Increase	125 °C	-40 °C	8-SOIC	3.9 mm	0.154 in	8-SOIC	360 °	0 °	3.3 V 5 V	Angle	Hall Effect	Analog Voltage
ams-OSRAM USA INC. AS5600L-WL_EK_AB													3.3 V 5 V				Magnetic Rotary Position	AS5600L	Accessories Board(s)
ams-OSRAM USA INC. AS5600-ASOT	Gull Wing	Surface Mount	External Magnet Not Included	Clockwise Increase	125 °C	-40 °C	8-SOIC	3.9 mm	0.154 in	8-SOIC	360 °	0 °	3.3 V 5 V	Angle	Hall Effect	Analog Voltage
ams-OSRAM USA INC. AS5600-SO_EK_ST													3.3 V 5 V				Magnetic Rotary Position	AS5600	Accessories Board(s)	360 °	I2C
ams-OSRAM USA INC. AS5600-SO_POTUINO													3.3 V 5 V				Magnetic Rotary Position	AS5600	Accessories Board(s)	360 °	I2C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 52.50

General part information

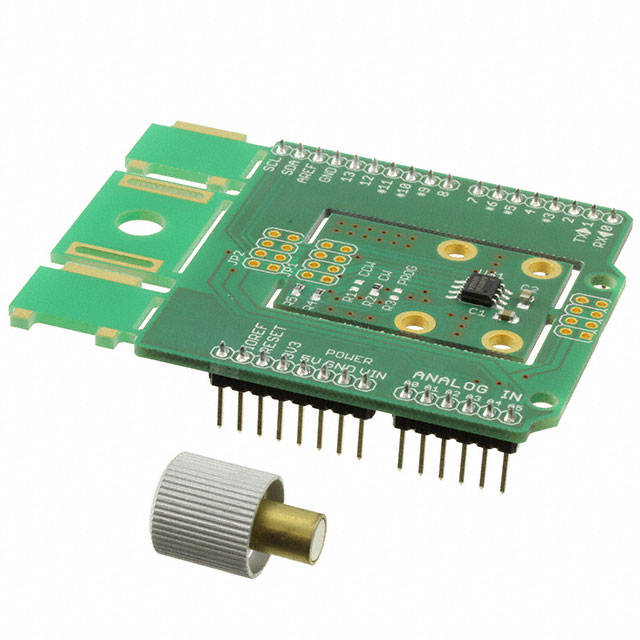

AS5600 - Magnetic, Rotary Position Sensor Evaluation Board
