T38045-21-0

Active

Curtis Industries

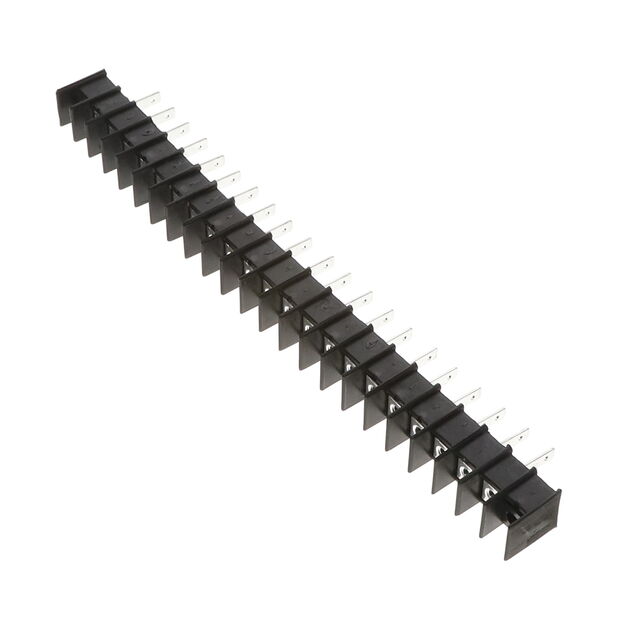

CONN BARRIER STRP 21CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T38045-21-0

Active

Curtis Industries

CONN BARRIER STRP 21CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T38045-21-0

Barrier Type	2 Wall (Dual)
Bottom Termination	0.187 in
Bottom Termination	Quick Connect
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	21
Number of Rows	1
Number of Wire Entries	21
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

T38045 Series

Part	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Barrier Type	Material - Insulation	Mounting Type	Voltage Rating	Features	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Terminal Block Type	Number of Circuits	Bottom Termination	Bottom Termination	Top Termination	Number of Wire Entries	Number of Wire Entries [custom]
Curtis Industries T38045-10-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG	9.53 mm	0.375 in	Barrier Block	10	0.187 in	Quick Connect	Screws	10
Curtis Industries T38045-16-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG	9.53 mm	0.375 in	Barrier Block	16	0.187 in	Quick Connect	Screws	16
Curtis Industries T38045-14-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG	9.53 mm	0.375 in	Barrier Block	14	0.187 in	Quick Connect	Screws	14
Curtis Industries T38045-02-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG	9.53 mm	0.375 in	Barrier Block	2	0.187 in	Quick Connect	Screws	2
Curtis Industries T38045-25-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG	9.53 mm	0.375 in	Barrier Block	25	0.187 in	Quick Connect	Screws	25
Curtis Industries T38045-03-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG	9.53 mm	0.375 in	Barrier Block	3	0.187 in	Quick Connect	Screws	3
Curtis Industries T38045-13-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG	9.53 mm	0.375 in	Barrier Block	13	0.187 in	Quick Connect	Screws	13
Curtis Industries T38045-21-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG	9.53 mm	0.375 in	Barrier Block	21	0.187 in	Quick Connect	Screws	21
Curtis Industries T38045-01-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG			Barrier Block	1	0.187 in	Quick Connect	Screws		1
Curtis Industries T38045-19-0	1	20 A	UL94 V-0	2 Wall (Dual)	Polypropylene (PP)	Chassis Panel	300 VDC	Flange	105 C	12 AWG	22 AWG	9.53 mm	0.375 in	Barrier Block	19	0.187 in	Quick Connect	Screws	19

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.54
		10	$ 12.80
		25	$ 12.07
		50	$ 11.49
		100	$ 11.27
		250	$ 9.82
		500	$ 9.45
		1000	$ 9.09

Description

General part information

T38045 Series

21 Circuit 0.375" (9.53mm) Barrier Block Connector Screws (Not Included)

Documents

Technical documentation and resources

No documents available
