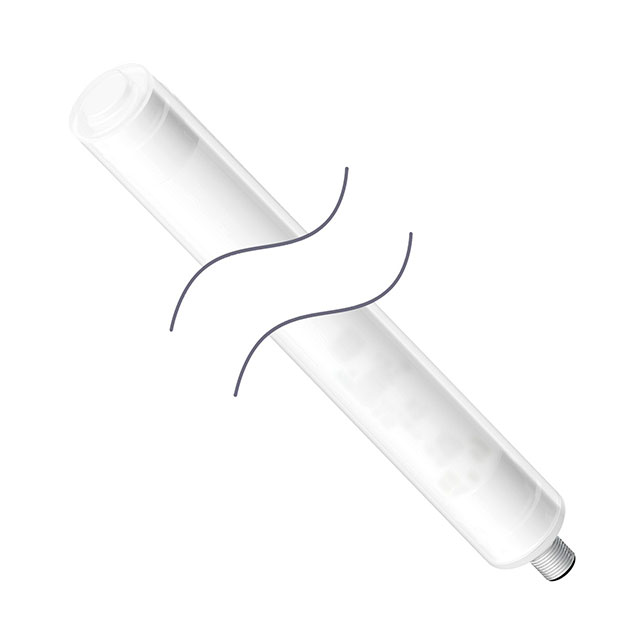

WLS27XW850DSQ

Active

BANNER ENGINEERING

LED STRIP LIGHT, NON-CASCADABLE, COOL WHITE, 850MM LENGTH, 0.73A, 30 VDC SUPPLY, WLS27 SERIES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LED STRIP LIGHT, NON-CASCADABLE, COOL WHITE, 850MM LENGTH, 0.73A, 30 VDC SUPPLY, WLS27 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Illumination Color	Luminous Flux	Profile (W x H) [diameter]	Profile (W x H) [diameter]	Approval Agency	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Ingress Protection	Lens Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Length	Length	Length [x]	Length [x]
BANNER ENGINEERING WLS27XW710DSQ	Cool White	2000 lm	1.06 in	27 mm	CE cULus	Connector (M12)	-40 °C	70 °C	Aluminum (Al)	IP66 IP67 IP69K	Diffused Tubular	12 V	30 VDC	27.95 "	710 mm
BANNER ENGINEERING WLS27XW145DSQ	Cool White	400 lm	1.06 in	27 mm	CE cULus	Connector (M12)	-40 °C	70 °C	Aluminum (Al)	IP66 IP67 IP69K	Diffused Tubular	12 V	30 VDC	5.71 in	145 mm
BANNER ENGINEERING WLS27XW570DSQ	Cool White	1600 lm	1.06 in	27 mm	CE cULus	Connector (M12)	-40 °C	70 °C	Aluminum (Al)	IP66 IP67 IP69K	Diffused Tubular	12 V	30 VDC	22.44 in	570 mm
BANNER ENGINEERING WLS27XW430DSQ	Cool White	1200 lm	1.06 in	27 mm	CE cULus	Connector (M12)	-40 °C	70 °C	Aluminum (Al)	IP66 IP67 IP69K	Diffused Tubular	12 V	30 VDC			430 mm	16.93 "
BANNER ENGINEERING WLS27XW850DSQ	Cool White	2400 lm	1.06 in	27 mm	CE cULus	Connector (M12)	-40 °C	70 °C	Aluminum (Al)	IP66 IP67 IP69K	Diffused Tubular	12 V	30 VDC
BANNER ENGINEERING WLS27XW285DSQ	Cool White	800 lm	1.06 in	27 mm	CE cULus	Connector (M12)	-40 °C	70 °C	Aluminum (Al)	IP66 IP67 IP69K	Diffused Tubular	12 V	30 VDC
BANNER ENGINEERING WLS27XW1130DSQ	Cool White	3200 lm	1.06 in	27 mm	CE cULus	Connector (M12)	-40 °C	70 °C	Aluminum (Al)	IP66 IP67 IP69K	Diffused Tubular	12 V	30 VDC			1130 mm	44.49 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 465.00
Newark	Each	1	$ 465.00

General part information

LED STRIP LIGHT, NON-CASCADABLE, COOL WHITE, 850MM LENGTH, 0.73A, 30 VDC SUPPLY, WLS27 SERIES
