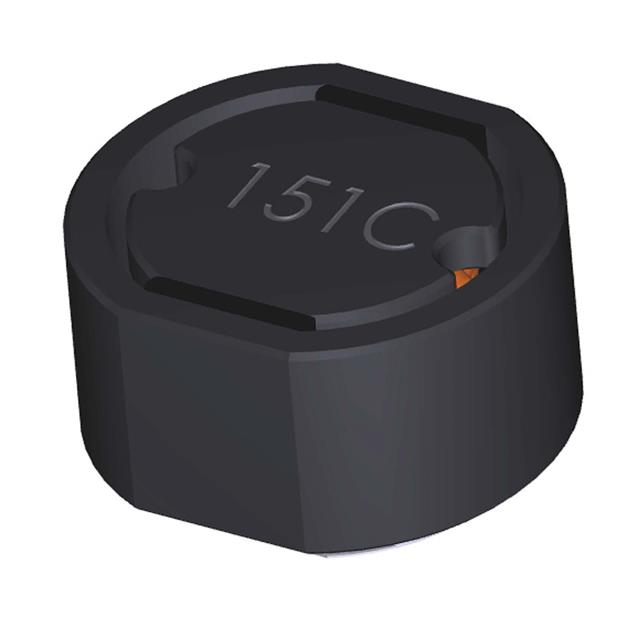

24S220C

Active

Murata Power Solutions Inc.

TAPE&REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsProduct Change Notice EN 2400 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	24S220C

Current Rating (Amps)	1.1 A
DC Resistance (DCR)	120 mOhm
Frequency - Self Resonant	15.7 MHz
Height - Seated (Max)	4.5 mm
Height - Seated (Max) [Max]	0.177 "
Inductance	22 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	0.303 in
Size / Dimension [x]	7.7 mm
Size / Dimension [y]	7.1 mm
Size / Dimension [y]	0.28 in
Type	Wirewound

2400 Series

Power Inductors - SMD 15 UH 1.34A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Frequency - Self Resonant	Mounting Type	Type	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max)	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	DC Resistance (DCR)
Murata Power Solutions Inc. 24S120C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	12 µH	29 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm	74 mOhm	1.5 A	Nonstandard
Murata Power Solutions Inc. 24S330C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	33 µH	11.2 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm	190 mOhm	900 mA	Nonstandard
Murata Power Solutions Inc. 24S6R8C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	6.8 µH	39 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm		2 A	Nonstandard	45 mOhm
Murata Power Solutions Inc. 24S680C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	68 µH	8.09 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm		0.63 A	Nonstandard
Murata Power Solutions Inc. 24S220C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	22 µH	15.7 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm		1.1 A	Nonstandard	120 mOhm
Murata Power Solutions Inc. 24S150C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	15 µH	19.7 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm	90 mOhm	1.34 A	Nonstandard
Murata Power Solutions Inc. 24S2R7C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	2.7 µH	79 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm	28 mOhm	3.1 A	Nonstandard
Murata Power Solutions Inc. 24S151C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	150 µH	4.88 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm		0.42 A	Nonstandard	860 mOhm
Murata Power Solutions Inc. 24S4R7C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	4.7 ÁH	52 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm	37 mOhm	2.39 A	Nonstandard
Murata Power Solutions Inc. 24S180C	85 °C	-40 °C	0.303 in	7.1 mm	7.7 mm	0.28 in	18 µH	23 MHz	Surface Mount	Wirewound	Shielded	0.177 "	4.5 mm	91 mOhm	1.22 A	Nonstandard
