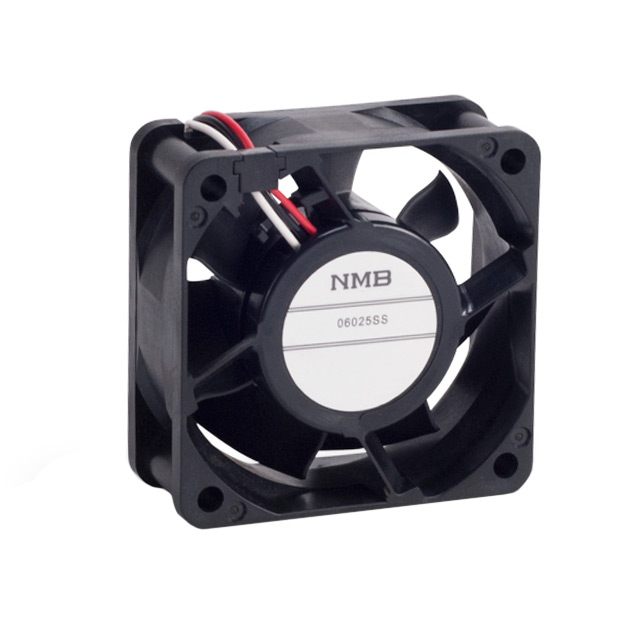

06025SS-12N-AT-D0
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 12 V, SQUARE, 60 MM, 25 MM, SLEEVE BEARING, 23.31 CFM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
06025SS-12N-AT-D0
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 12 V, SQUARE, 60 MM, 25 MM, SLEEVE BEARING, 23.31 CFM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 06025SS-12N-AT-D0 |
|---|---|
| Air Flow | 0.652 mł/min |
| Air Flow | 23.3 CFM |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 0.18 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 33 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.16 W |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 0.25 in H2O |
| Static Pressure | 62.3 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.09 | |
| 10 | $ 7.72 | |||
| 25 | $ 7.26 | |||
| 50 | $ 6.99 | |||
| 120 | $ 6.43 | |||
| 360 | $ 6.02 | |||
| 600 | $ 5.93 | |||
Description
General part information
06025SS Series
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Sleeve 23.3 CFM (0.652mł/min) 3 Wire Leads
