1555 WO001

Active

ALPHA WIRE

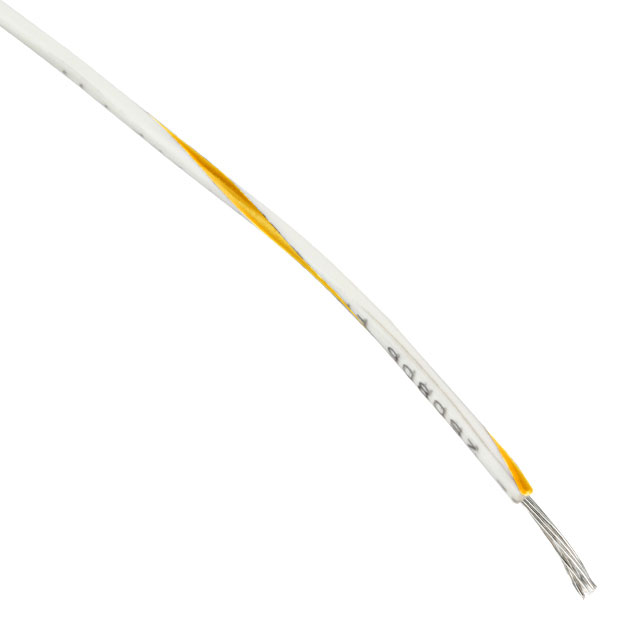

HOOKUP STRND 18AWG WHT/ORG 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog Alpha Wire Print Notification

1555 WO001

Active

ALPHA WIRE

HOOKUP STRND 18AWG WHT/ORG 1000'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog Alpha Wire Print Notification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1555 WO001

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	2.01 mm
Jacket (Insulation) Diameter [diameter]	0.079 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	White, Orange Stripe
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76B Type MW
Voltage	1000 V
Wire Gauge	18 AWG

1555 Series

Part	Length	Length	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Qualification	Wire Gauge	Voltage	Jacket (Insulation) Material	Conductor Material	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 1555 WG001	1000 ft	304.8 m	Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned
ALPHA WIRE 1555 OR001	1000 ft	304.8 m	Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned	Orange
ALPHA WIRE 1555 BR005			Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned	Brown	30.5 m	100 ft
ALPHA WIRE 1555 WS005			Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned	White Gray Stripe	30.5 m	100 ft
ALPHA WIRE 1555 WB001	1000 ft	304.8 m	Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned	White Black Stripe
ALPHA WIRE 1555 SL001	1000 ft	304.8 m	Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned	Slate
ALPHA WIRE 1555 WO001	1000 ft	304.8 m	Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned	White Orange Stripe
ALPHA WIRE 1555 WR001	1000 ft	304.8 m	Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned	White Red Stripe
ALPHA WIRE 1555 WU005			Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned	White Blue Stripe	30.5 m	100 ft
ALPHA WIRE 1555 VI001	1000 ft	304.8 m	Hook-Up	-40 °C	80 C	2.01 mm	0.079 in	16	30 AWG	0.016 in	0.41 mm	MIL-W-76B Type MW	18 AWG	1000 V	Poly-Vinyl Chloride (PVC)	Copper Tinned	Violet

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 351.37
		2	$ 334.17
		3	$ 324.43
		5	$ 312.50
		7	$ 304.84
		10	$ 296.89
		25	$ 282.35

Description

General part information

1555 Series

18 AWG Hook-Up Wire 16/30 White, Orange Stripe 1000V 1000.0' (304.8m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet
