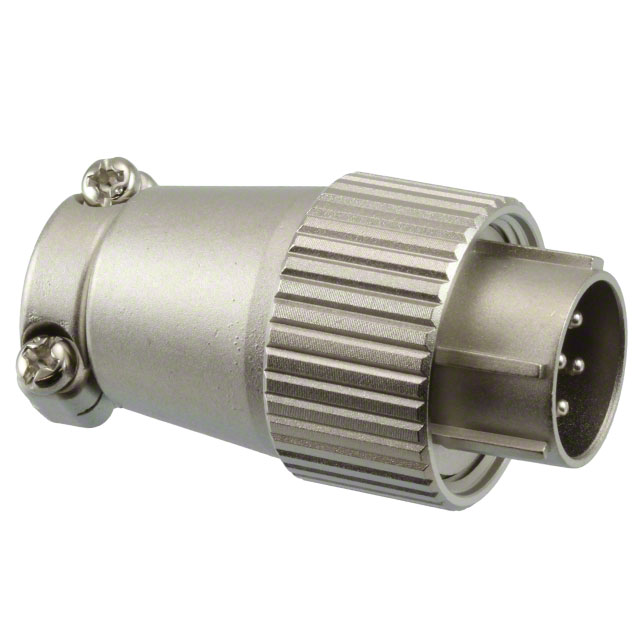

JR16PK-7P(71)
ObsoleteHirose Electric USA, Inc.
CONN PLUG MALE 7P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JR16PK-7P(71)
ObsoleteHirose Electric USA, Inc.
CONN PLUG MALE 7P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JR16PK-7P(71) |
|---|---|
| Backshell Material, Plating | Aluminum Alloy, Nickel |
| Cable Opening [custom] | 0.453 in |
| Cable Opening [custom] | 11.51 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 118.1 µin |
| Contact Finish Thickness - Mating | 3 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 A |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Insert Material | Phenol Formaldehyde (PF) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 16 |
| Shielding | Unshielded |
| Voltage Rating | 350 V, 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
JR16PK Series
7 Position Circular Connector Plug, Male Pins Solder Cup
