84-653000-10

Active

Aries Electronics

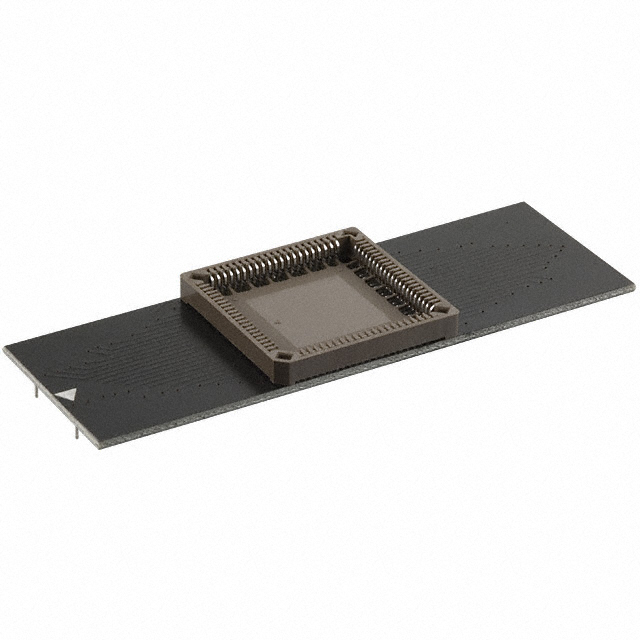

SOCKET ADAPTER PLCC TO 84DIP 0.6

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER PLCC TO 84DIP 0.6

Technical Specifications

Parameters and characteristics for this part

Specification	84-653000-10

Board Material	FR4 Epoxy Glass
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Post [custom]	Brass
Convert From (Adapter End)	PLCC
Convert To (Adapter End)	0.6 in
Convert To (Adapter End)	DIP
Convert To (Adapter End)	15.24 mm
Current Rating (Amps)	1 A
Features	Socket Included
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Pins	84
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in

Part	Termination Post Length	Termination Post Length	Board Material	Convert From (Adapter End)	Contact Finish - Post	Features	Pitch - Post	Pitch - Post	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Number of Pins	Mounting Type	Current Rating (Amps)	Contact Material - Post [custom]	Pitch - Mating	Pitch - Mating
Aries Electronics 84-653000-10	3.18 mm	0.125 in	FR4 Epoxy Glass	PLCC	Tin-Lead	Socket Included	2.54 mm	0.1 in	0.6 in	DIP	15.24 mm	Solder	200 µin	5.08 µm	UL94 V-0	84	Through Hole	1 A	Brass	0.05 in	1.27 mm
Aries Electronics 84-653000-11-RC	3.18 mm	0.125 in	FR4 Epoxy Glass	PLCC	Gold	Socket Included	2.54 mm	0.1 in	0.6 in	DIP	15.24 mm	Solder	10 çin	0.25 çm	UL94 V-0	84	Through Hole	1 A	Brass	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 137.10
