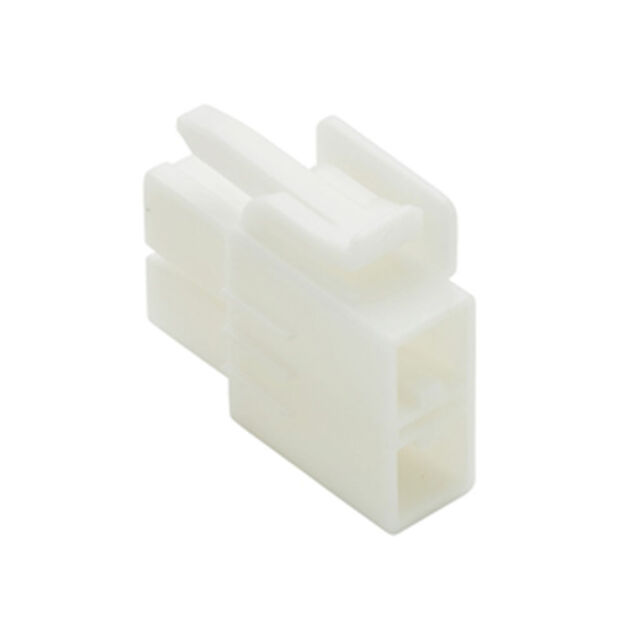

0359659220

Active

Molex

CONN HSG RCPT 2POS NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0359659220

Active

Molex

CONN HSG RCPT 2POS NATURAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0359659220

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Blade Socket, Male Blade
Fastening Type	Latch Lock
Material - Insulation	Polycarbonate (PC), Polyethylene Terephthalate (PET)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Row Spacing	8 mm
Row Spacing	0.315 in
Stacking Direction	Top to Bottom

035965 Series

Part	Color	Voltage Rating	Connector Type	Stacking Direction	Note	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Row Spacing	Row Spacing	Number of Positions	Contact Termination	Fastening Type	Number of Rows	Mounting Type
Molex 0359650204	Blue	300 VDC	Plug	Top to Bottom	Contacts Not Included	Female Blade Socket Male Blade	-40 °C	120 °C	Polybutylene Terephthalate (PBT) Polyester	8 mm	0.315 in	2	Crimp	Latch Lock	2	Free Hanging (In-Line)
Molex 0359659210	Natural		Receptacle	Top to Bottom	Contacts Not Included	Female Blade Socket Male Blade	-40 °C	120 °C	Polycarbonate (PC) Polyethylene Terephthalate (PET)	8 mm	0.315 in	2	Crimp	Latch Lock	2	Free Hanging (In-Line)
Molex 0359650212
Molex 0359659220	Natural		Receptacle	Top to Bottom	Contacts Not Included	Female Blade Socket Male Blade	-40 °C	120 °C	Polycarbonate (PC) Polyethylene Terephthalate (PET)	8 mm	0.315 in	2	Crimp	Latch Lock	2	Free Hanging (In-Line)
Molex 0359650210	Natural		Receptacle	Top to Bottom	Contacts Not Included	Female Blade Socket Male Blade	-40 °C	120 °C	Polybutylene Terephthalate (PBT)	8 mm	0.315 in	2	Crimp	Latch Lock	2	Free Hanging (In-Line)
Molex 0359659222
Molex 0359659203	Yellow	300 VDC	Plug	Top to Bottom	Contacts Not Included	Female Blade Socket Male Blade	-40 °C	110 °C	Polycarbonate (PC) Polyethylene Terephthalate (PET)	8 mm	0.315 in	2	Crimp	Latch Lock	2	Free Hanging (In-Line)
Molex 0359659200	Natural		Receptacle	Top to Bottom	Contacts Not Included	Female Blade Socket Male Blade	-40 °C	120 °C	Polycarbonate (PC) Polyethylene Terephthalate (PET)	8 mm	0.315 in	2	Crimp	Latch Lock	2	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12000	$ 0.17

Description

General part information

035965 Series

2 Position Blade Type Power Housing Connector Receptacle Natural
