1694A 010500
ActiveBelden Inc.

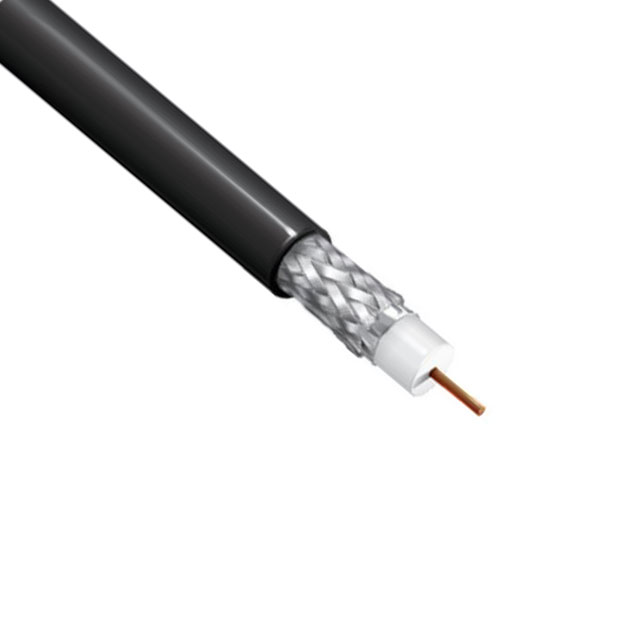

CABLE COAX RG-6U 18AWG 500'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1694A 010500 |
|---|---|
| Cable Group | RG-6 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 0.18 in |
| Dielectric Diameter [diameter] | 4.57 mm |
| Impedance | 75 Ohms |
| Jacket (Insulation) Diameter [diameter] | 6.96 mm |
| Jacket (Insulation) Diameter [diameter] | 0.274 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 152.4 m |
| Length | 6000 in |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shield Coverage | 95 %, 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| VoP, Velocity of Propagation | 82 |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 790.42 | |
| 3 | $ 731.25 | |||
| 5 | $ 705.88 | |||
| 7 | $ 688.98 | |||
| 10 | $ 672.07 | |||
Description
General part information
1694A Series
Coaxial Cable 18 AWG RG-6 500.0' (152.40m) 75 Ohms
