1212A 010500

Active

Belden Inc.

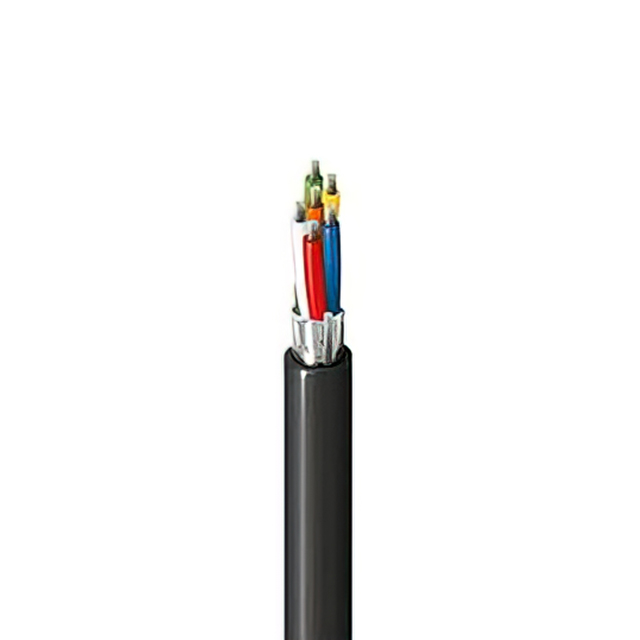

CABLE 6COND 26AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 26AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	1212A 010500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	26 AWG

Part	Features	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Usage	Shield Coverage	Jacket Color	Voltage	Shield Type	Conductor Strand	Wire Gauge	Conductor Insulation	Jacket (Insulation) Material	Cable Type	Number of Conductors
Belden Inc. 1212A 010500	Drain Wire	Copper Tinned	-20 C	80 C	0.22 in	5.59 mm	UL Style 2464	Aluminum	0.94 mm	0.037 in	500 '	152.4 m	Instrumentation	100 %	Black	300 V	Foil	7 Strands 34 AWG	26 AWG	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Multi-Conductor	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 5.31

General part information

6 Conductor Multi-Conductor Cable Black 26 AWG Foil 500.0' (152.4m)
