0190230010

Active

Molex

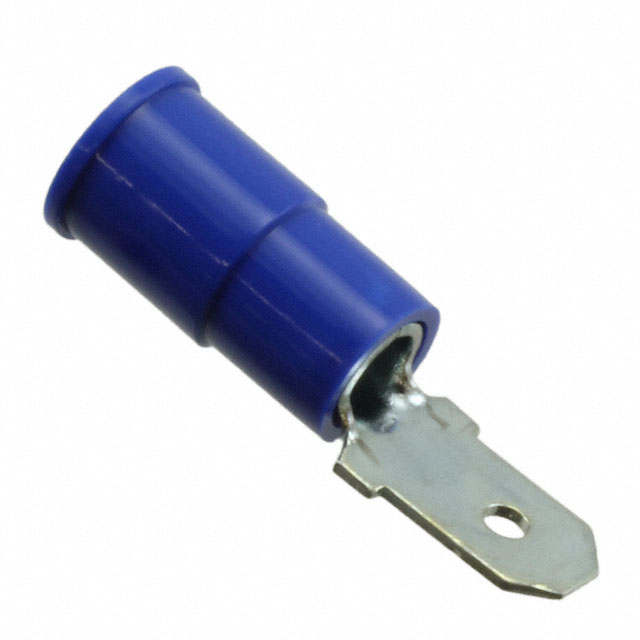

CONN QC TAB 14-16AWG 0.187 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Datasheet

0190230010

Active

Molex

CONN QC TAB 14-16AWG 0.187 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190230010

Color	Blue
Contact Finish	Zinc
Contact Material	Brass
Gender	Male
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	0.175 in
Insulation Diameter [diameter]	4.45 mm
Length - Overall [x]	23.39 mm
Length - Overall [x]	0.921 "
Mounting Type	Free Hanging (In-Line)
Tab Length	0.24 "
Tab Length	6.1 mm
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp

019023 Series

Part	Termination	Color	Gender	Insulation	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Tab Width	Tab Width	Mounting Type	Contact Finish	Tab Thickness	Tab Thickness	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter
Molex 0190230012	Crimp	Blue	Male	Non-Mating End Insulated	Brass	0.175 in	4.45 mm	23.39 mm	0.921 "	0.3 in	7.62 mm	6.35 mm	0.25 in	Free Hanging (In-Line)	Zinc	0.032 in	0.81 mm	Standard
Molex 0190230014	Crimp	Blue	Male	Non-Mating End Insulated	Brass	0.175 in	4.45 mm	23.39 mm	0.921 "	0.3 in	7.62 mm	6.35 mm	0.25 in	Free Hanging (In-Line)	Zinc	0.032 in	0.81 mm	Standard
Molex 0190230011	Crimp	Blue	Male	Non-Mating End Insulated	Brass	0.175 in	4.45 mm	23.39 mm	0.921 "	0.24 "	6.1 mm	4.75 mm	0.187 in	Free Hanging (In-Line)	Zinc	0.02 "	0.51 mm	Standard
Molex 0190230006	Crimp	Red	Male	Non-Mating End Insulated	Brass	0.145 "		23.39 mm	0.921 "	0.3 in	7.62 mm	6.35 mm	0.25 in	Free Hanging (In-Line)	Zinc	0.032 in	0.81 mm	Standard	22 AWG	17.5 AWG	3.68 mm
Molex 0190230089	Crimp	Blue	Male	Non-Mating End Insulated	Brass	0.175 in	4.45 mm	23.39 mm	0.921 "	0.3 in	7.62 mm	6.35 mm	0.25 in	Free Hanging (In-Line)	Zinc	0.032 in	0.81 mm	Standard
Molex 0190230008	Crimp	Yellow	Male	Non-Mating End Insulated	Brass	0.245 "	6.22 mm	27.94 mm	1.1 in	0.3 in	7.62 mm	6.35 mm	0.25 in	Free Hanging (In-Line)	Zinc	0.032 in	0.81 mm	Standard	12 AWG	10 AWG
Molex 0190230010	Crimp	Blue	Male	Non-Mating End Insulated	Brass	0.175 in	4.45 mm	23.39 mm	0.921 "	0.24 "	6.1 mm	4.75 mm	0.187 in	Free Hanging (In-Line)	Zinc	0.02 "	0.51 mm	Standard
Molex 0190230009	Crimp	Yellow	Male	Non-Mating End Insulated	Brass	0.245 "	6.22 mm	27.94 mm	1.1 in	0.3 in	7.62 mm	6.35 mm	0.25 in	Free Hanging (In-Line)	Zinc	0.032 in	0.81 mm	Standard	12 AWG	10 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34
		10	$ 0.28
		100	$ 0.20
		1000	$ 0.16
		3000	$ 0.15

Description

General part information

019023 Series

0.187" (4.75mm) Quick Connect Male 14-16 AWG Crimp Connector Non-Mating End Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
