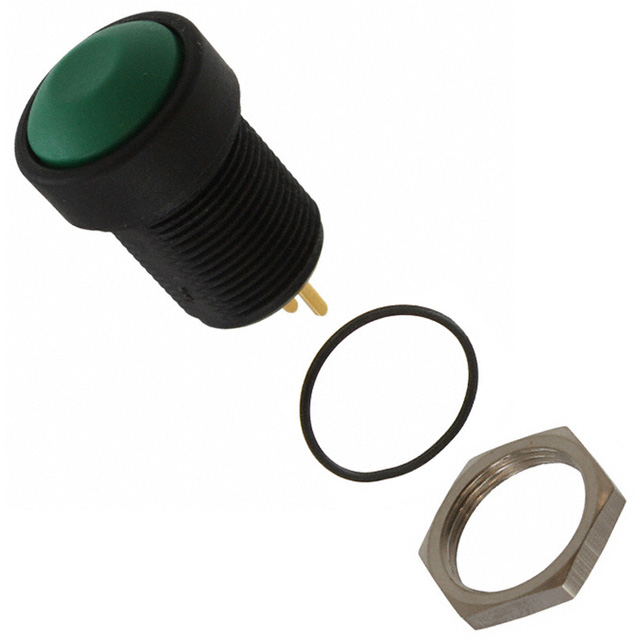

IMR7P432234

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	IMR7P432234

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	3 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - DC	28 V

Part	Panel Cutout Dimensions [diameter]	Actuator Type	Mounting Type	Circuit	Switch Function	Voltage Rating - DC	Color - Actuator/Cap	Ingress Protection	Actuator Marking	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mechanical Life	Type	Features	Electrical Life
APEM IMR7P472234	13.6 mm	Button Domed Round	Panel Mount Front	SPDT	On-Mom	28 V	White	IP67 - Dust Tight Waterproof	No Marking	PC Pin	85 °C	-40 °C	3 A	1000000 Cycles	Standard	Epoxy Sealed Terminals	25000 Steps
APEM IMR7P432234	13.6 mm	Button Domed Round	Panel Mount Front	SPDT	On-Mom	28 V	Green	IP67 - Dust Tight Waterproof	No Marking	PC Pin	85 °C	-40 °C	3 A	1000000 Cycles	Standard	Epoxy Sealed Terminals	25000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
