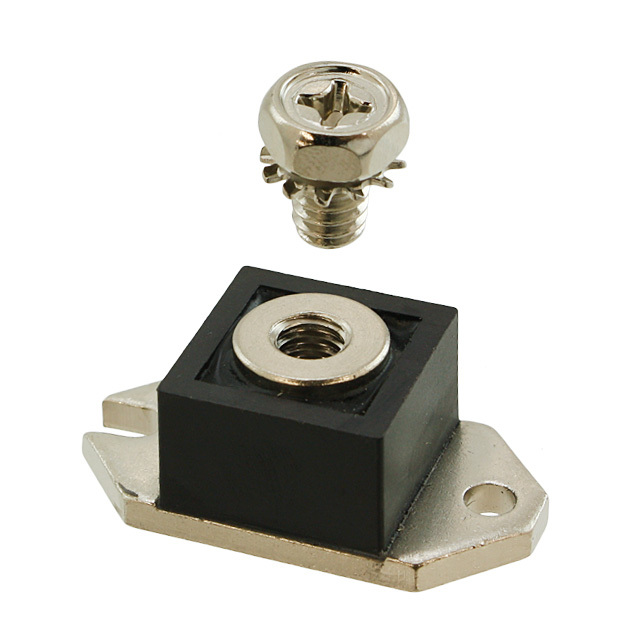

MBRH24040R

Active

GeneSiC Semiconductor

DIODE SCHOTTKY 40V 240A D-67

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE SCHOTTKY 40V 240A D-67

Technical Specifications

Parameters and characteristics for this part

Specification	MBRH24040R

Current - Average Rectified (Io)	240 A
Current - Reverse Leakage @ Vr	1 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	D-67
Speed	200 mA, 500 ns
Supplier Device Package	D-67
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	720 mV

Part	Package / Case	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Speed	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package
GeneSiC Semiconductor MBRH24040R	D-67	240 A	40 V	Schottky	200 mA 500 ns	Chassis Mount	150 °C	-55 °C	1 mA	720 mV	D-67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	108	$ 63.78

General part information

Diode 40 V 240A Chassis Mount D-67
