6042429

Active

SICK, Inc.

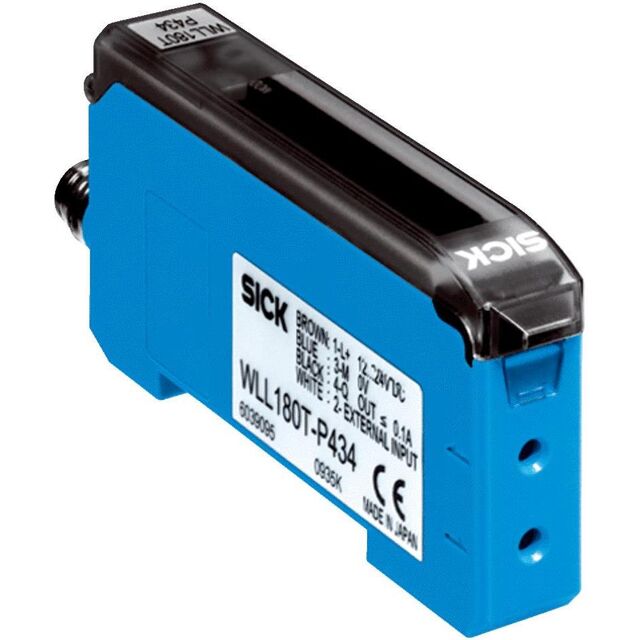

SENSOR FIBER OPTIC 20M PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR FIBER OPTIC 20M PNP

Technical Specifications

Parameters and characteristics for this part

Part	Cable Length	Cable Length	Ingress Protection	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method	Sensing Distance	Sensing Distance	Output Configuration	Adjustment Type	Response Time	Sensing Method
SICK, Inc. 6050763	78.74 in	2 m	IP50	RED (650nm)	-25 °C	55 °C	12 V	24 V	Cable	787.402 in	20 m	NPN	Adjustable	50 µs	Fiber Optic
SICK, Inc. WLL180T-N474			IP50	Infrared	-25 °C	55 °C	12 V	24 V	Connector M8	39.37 in	1 m	NPN	Adjustable	50 µs	Fiber Optic
SICK, Inc. WLL180T-F434			IP50	RED (650nm)	-25 °C	55 °C	12 V	24 V	Connector M8	787.402 in	20 m	PNP	Adjustable	50 µs	Fiber Optic
SICK, Inc. WLL180T-P434			IP50	RED (650nm)	-25 °C	55 °C	12 V	24 V	Connector M8	787.402 in	20 m	PNP	Adjustable	50 µs	Fiber Optic
SICK, Inc. 6039097	78.74 in	2 m	IP50	RED (650nm)	-25 °C	55 °C	12 V	24 V	Cable	55.118 in	1.4 m	PNP	Adjustable	8 ms	Fiber Optic
SICK, Inc. 6039100	78.74 in	2 m	IP50	RED (650nm)	-25 °C	55 °C	12 V	24 V	Cable	787.402 in	20 m	NPN	Adjustable	50 µs	Fiber Optic
SICK, Inc. 6039093	78.74 in	2 m	IP50	RED (650nm)	-25 °C	55 °C	12 V	24 V	Cable	787.402 in	20 m	PNP	Adjustable	50 µs	Fiber Optic
SICK, Inc. 6039099	78.74 in	2 m	IP50	RED (650nm)	-25 °C	55 °C	12 V	24 V	Cable	55.118 in	1.4 m	NPN	Adjustable	8 ms	Fiber Optic
SICK, Inc. 6039101			IP50	RED (650nm)	-25 °C	55 °C	12 V	24 V	Connector M8	787.402 in	20 m	PNP	Adjustable	50 µs	Fiber Optic
SICK, Inc. 6042429			IP50	RED (650nm)	-25 °C	55 °C	12 V	24 V	Connector M8	787.402 in	20 m	PNP	Adjustable	50 µs	Fiber Optic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 293.69

General part information

Fiber Optic Optical Sensor 787.402" (20m) PNP

Technical documentation and resources
