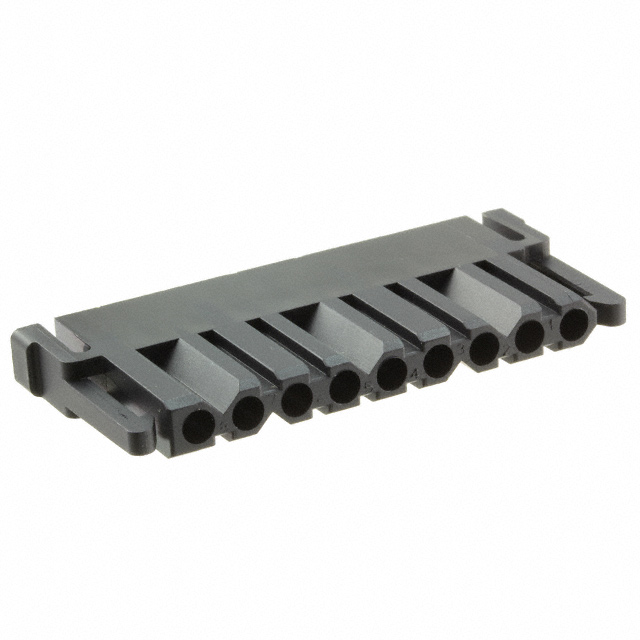

TST09PF00

Active

ITT Cannon, LLC

CONN PLUG HSG 9POS 5.08MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG HSG 9POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Fastening Type	Contact Termination	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Mounting Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Color	Note	Current Rating (Amps)	Material Flammability Rating	Contact Shape	Contact Length - Post	Contact Length - Post	Features	Contact Finish - Mating	Style	Insulation Color	Termination	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Voltage Rating	Shrouding
ITT Cannon, LLC TST09PF00	Female Socket	Latch Lock	Crimp and Solder	0.2 in	5.08 mm	Plug	9	Free Hanging (In-Line)	Nylon Polyamide (PA)	105 ░C	-55 °C	1	Black	Contacts Not Included
ITT Cannon, LLC TST09RE01Y	Male Pin	Latch Holder				Receptacle	9	Through Hole Right Angle	Nylon Polyamide (PA)	105 ░C	-40 °C	1			10 A	UL94 V-0	Circular	0.157 in	4 mm	Mounting Flange	Gold	Board to Cable/Wire	Black	Solder	9.8 mm	0.386 in	5.08 mm	0.2 in	16 Áin	0.41 Ám	All	250 VDC	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Rectangular Connectors - Housings Plug Black 0.200" (5.08mm)
