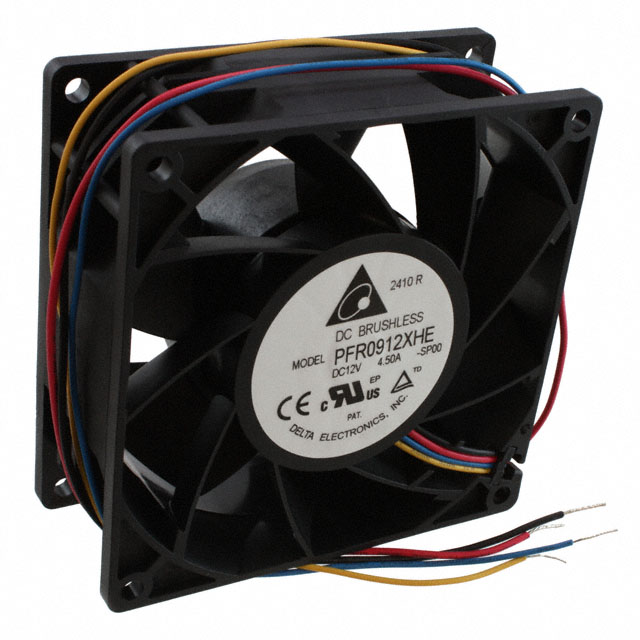

PFR0912XHE-SP00

Active

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	PFR0912XHE-SP00

Air Flow	5.19 m³/min
Air Flow	185.5 CFM
Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Current Rating (Amps)	3.7 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	71 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	44.4 W
RPM	11500 RPM
Static Pressure	2.523 in H2O
Static Pressure	628.5 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Width [y]	38 mm

Part	Width [y]	Air Flow	Air Flow	Power (Watts)	Termination	Static Pressure	Static Pressure	RPM	Features	Approval Agency	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Bearing Type	Current Rating (Amps)	Material - Frame	Material - Blade	Noise	Lifetime @ Temp.
Delta Electronics PFR0912XHE-SP00	38 mm	5.19 m³/min	185.5 CFM	44.4 W	4 Wire Leads	2.523 in H2O	628.5 Pa	11500 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE cURus VDE	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	13.2 VDC	7 V	12 VDC	Ball	3.7 A	Plastic	Plastic	71 dB(A)	70000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 185.5 CFM (5.19m³/min) 4 Wire Leads
