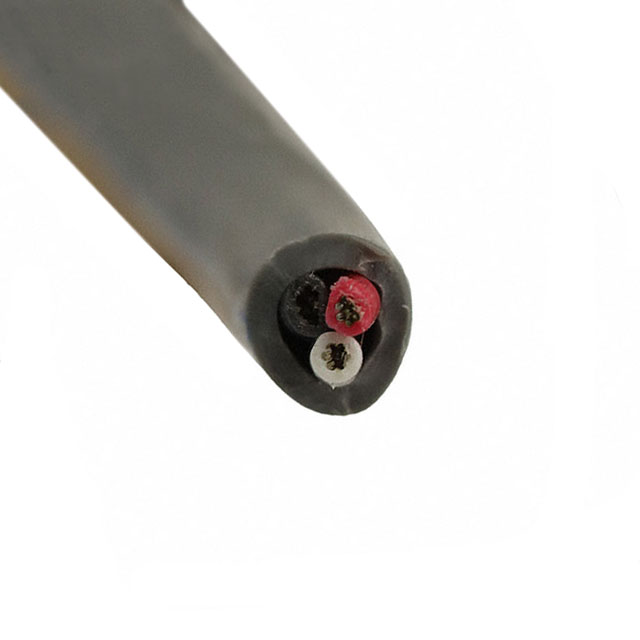

M33303 SL005

Active

ALPHA WIRE

CABLE 3COND 22AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 22AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M33303 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	4.45 mm
Jacket (Insulation) Diameter [diameter]	0.175 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Cable Type	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Wire Gauge	Number of Conductors
ALPHA WIRE M33303 SL005	Poly-Vinyl Chloride (PVC)	-20 C	80 C	UL Style 2576	Multi-Conductor	Poly-Vinyl Chloride (PVC)	4.45 mm	0.175 in	30.5 m	100 ft	Copper Tinned	300 V	28	7	Slate	22 AWG	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Slate 22 AWG 100.0' (30.5m)
