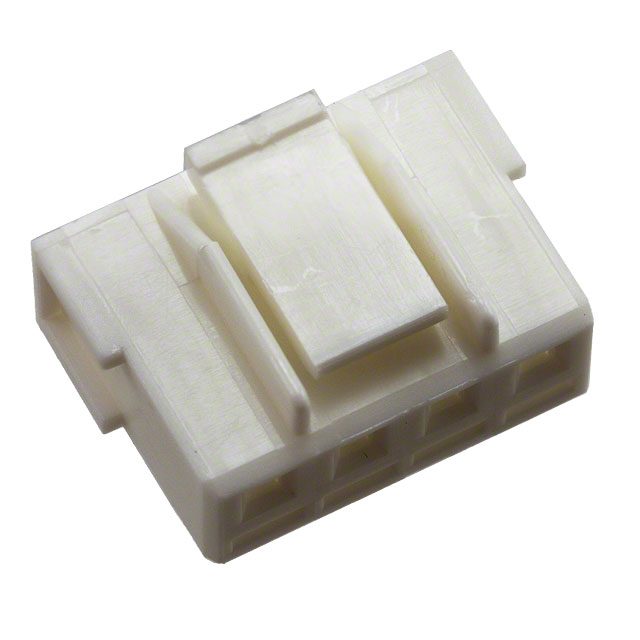

0351560400

Active

Molex

CONN RCPT HSG 4POS 3.96MM

Search across all available documentation for this part.

Active

Molex

CONN RCPT HSG 4POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	0351560400

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm

Part	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Number of Positions	Insulation Material	Fastening Type	Contact Termination	Note
Molex 0351561100	Free Hanging (In-Line)	Natural	-40 °C	105 ░C	Female Socket	0.156 in	3.96 mm	1	Receptacle	11	Polybutylene Terephthalate (PBT)	Latch Holder	Crimp	Contacts Not Included
Molex 0351561000	Free Hanging (In-Line)	Natural	-40 °C	105 ░C	Female Socket	0.156 in	3.96 mm	1	Receptacle	10	Polybutylene Terephthalate (PBT)	Latch Holder	Crimp	Contacts Not Included
Molex 0351560400	Free Hanging (In-Line)	Natural	-40 °C	105 ░C	Female Socket	0.156 in	3.96 mm	1	Receptacle	4	Polybutylene Terephthalate (PBT)	Latch Holder	Crimp	Contacts Not Included
Molex 0351560900	Free Hanging (In-Line)	Natural			Female Socket	0.156 in	3.96 mm	1	Receptacle	9		Latch Holder	Crimp	Contacts Not Included
Molex 0351560800	Free Hanging (In-Line)	Natural	-40 °C	105 ░C	Female Socket	0.156 in	3.96 mm	1	Receptacle	8	Polybutylene Terephthalate (PBT)	Latch Holder	Crimp	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
