AMPH-874S-050

Active

Pactech

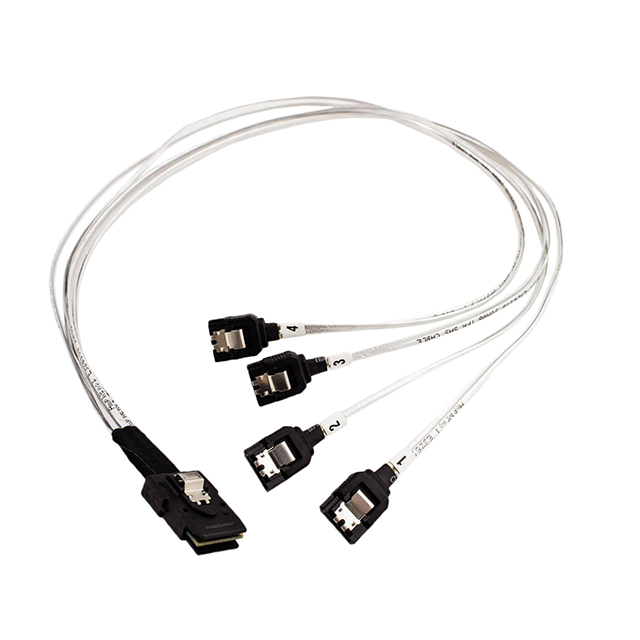

AMPH MINISAS TO 4X SATA 0.5M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMPH-874S-050

Active

Pactech

AMPH MINISAS TO 4X SATA 0.5M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMPH-874S-050

Cable Connectors	miniSAS, SATA
Cable Type	Flat
Color	Black
Connector Type	Plug to Receptacle
Fastening Type	Latch Lock
Features	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable
Frequency - Max [Max]	4.5 GHz
Gender	Male to Female
Length [x]	1.64 ft
Length [x]	500 mm
Number of Positions	36, 7
Number of Positions	4
Shielding	Shielded
Usage	Internal
Wire Gauge	30 AWG

AMPH-874S Series

Part	Gender	Color	Cable Connectors	Usage	Shielding	Number of Positions	Number of Positions	Connector Type	Cable Type	Features	Fastening Type	Length [x]	Length [x]	Cable Connectors	Length	Length	Frequency - Max [Max]	Wire Gauge
Pactech AMPH-874S-STEP-1075B	Male to Female	Black	miniSAS SATA (4)	Internal	Shielded	7 36	4	Plug to Receptacle	Flat	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Latch Lock Push-Pull
Pactech AMPH-874S-STEP-575	Male to Female	Black	miniSAS SATA (4)	Internal	Shielded	7 36	4	Plug to Receptacle	Flat	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Latch Lock	1.89 ft	575 mm
Pactech AMPH-874S-RT-SB-650	Male to Female	Black	miniSAS SATA Right Angle	Internal	Shielded	7 36	4	Plug to Receptacle	Flat	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Latch Lock Push-Pull			4	650 mm	2.13 ft
Pactech AMPH-874S-STEP-875	Male to Female	Black	miniSAS SATA (4)	Internal	Shielded	7 36	4	Plug to Receptacle	Flat	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Latch Lock Push-Pull	2.87 ft	875 mm
Pactech AMPH-874S-STEP-925-LP	Male to Female	Black	MiniSAS Low Profile SATA 4x	Internal	Shielded	7 36	4	Plug to Receptacle (4)	Flat	6Gbps SAS2.1 Amphenol SFF-8087 SATA Connectors	Latch Lock Push-Pull						6 Gbps	30 AWG
Pactech AMPH-874S-STEP-975-LP-A	Male to Female	Black	MiniSAS Low Profile SATA 4x	Internal	Shielded	7 36	4	Plug to Receptacle (4)	Flat	6Gbps SAS2.1 Amphenol SFF-8087 SATA Connectors	Latch Lock Push-Pull				975 mm	3.2 ft	6 Gbps	30 AWG
Pactech AMPH-874S26-075	Male to Female	Black	miniSAS SATA (4)	Internal	Shielded	7 36	4	Plug to Receptacle	Flat	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Latch Lock Push-Pull	2.46 ft	0.75 m
Pactech AMPH-874S-050	Male to Female	Black	miniSAS SATA	Internal	Shielded	7 36	4	Plug to Receptacle	Flat	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Latch Lock	1.64 ft	500 mm				4.5 GHz	30 AWG
Pactech AMPH-874S-RT-SB-1000	Male to Female	Black	miniSAS SATA Right Angle	Internal	Shielded	7 36	4	Plug to Receptacle	Flat	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Latch Lock Push-Pull			4
Pactech AMPH-874S-STEP-950LP	Male to Female	Black	MiniSAS Low Profile SATA 4x	Internal	Shielded	7 36	4	Plug to Receptacle	Flat	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Latch Lock Push-Pull				950 mm	3.12 ft	4.5 GHz	30 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 29.69

Description

General part information

AMPH-874S Series

36, 7 (4) Position MiniSAS, SATA Plug to Receptacle 1.64' (500.00mm) Black Shielded
