0034.7219

Active

SCHURTER Inc.

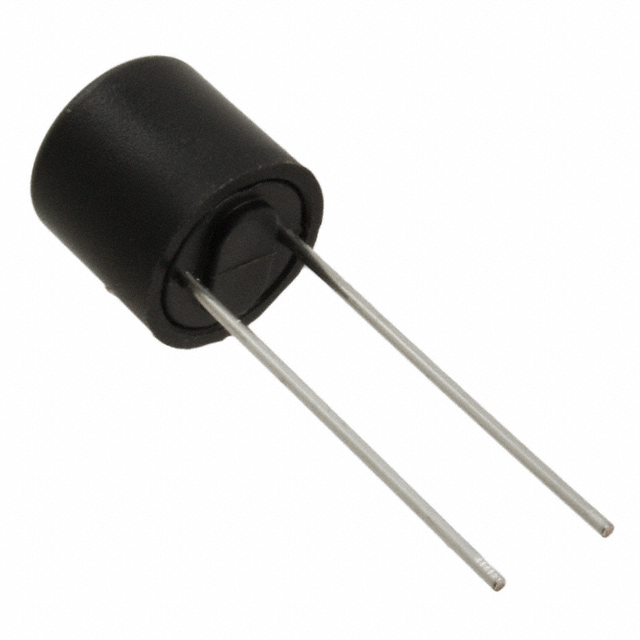

"MSTU 250, 2.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Search across all available documentation for this part.

Active

SCHURTER Inc.

"MSTU 250, 2.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Technical Specifications

Parameters and characteristics for this part

Specification	0034.7219

Approval Agency	cULus
Breaking Capacity @ Rated Voltage	50 A
Current Rating (Amps)	2.5 A
Fuse Type	Board Mount
Melting I²t	40.9
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Vertical, Radial, Can
Response Time	Slow Blow
Size / Dimension [diameter]	0.335 "
Size / Dimension [diameter]	8.5 mm
Size / Dimension [z]	0.335 "
Size / Dimension [z]	8.5 mm
Voltage Rating - AC	250 V

"MSTU 250, 2.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Part	Approval Agency	Response Time	Mounting Type	Voltage Rating - AC	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Breaking Capacity @ Rated Voltage	Melting I²t	Current Rating (Amps)	Fuse Type	Melting I˛t
SCHURTER Inc. 0034.7219	cULus	Slow Blow	Through Hole	250 V	Can Radial Vertical	0.335 "	8.5 mm	0.335 "	8.5 mm	85 °C	-40 °C	50 A	40.9	2.5 A	Board Mount
SCHURTER Inc. 0034.7221	cULus	Slow Blow	Through Hole	250 V	Can Radial Vertical	0.335 "	8.5 mm	0.335 "	8.5 mm	85 °C	-40 °C	50 A		4 A	Board Mount	67.2
SCHURTER Inc. 0034.7305	cULus	Slow Blow	Through Hole	250 V	Can Radial Vertical	0.335 "	8.5 mm	0.335 "	8.5 mm	85 °C	-40 °C	50 A	0.0456	100 mA	Board Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

"MSTU 250, 2.5 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/
