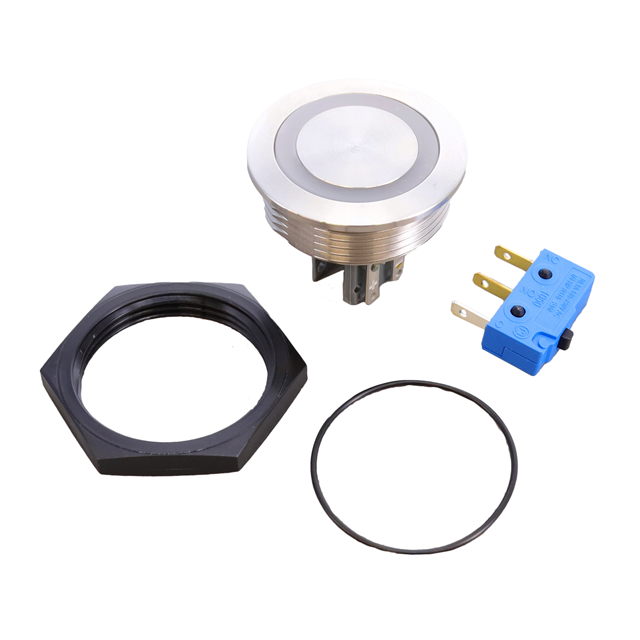

MSM30-NX0010A-SNCSNCNF-RI0GN024-Q0000-S

Obsolete

SCHURTER Inc.

MSM 30, METAL SWITCH, 10 A SWITC

Deep-Dive with AI

Search across all available documentation for this part.

MSM30-NX0010A-SNCSNCNF-RI0GN024-Q0000-S

Obsolete

SCHURTER Inc.

MSM 30, METAL SWITCH, 10 A SWITC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSM30-NX0010A-SNCSNCNF-RI0GN024-Q0000-S

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	10 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	30.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V

MSM30-NX Series

Part	Color - Actuator/Cap	Illumination Type, Color	Current Rating (Amps)	Type	Ingress Protection	Mounting Type	Panel Cutout Dimensions [diameter]	Electrical Life	Actuator Marking	Actuator Type	Circuit	Mechanical Life	Termination Style	Switch Function	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Voltage Rating - DC
SCHURTER Inc. MSM30-NX0005A-SNCSNCNF-RI0RD024-Q0000-S	Silver	LED Red	5 A	Anti-Vandal Illuminated	IP40	Panel Mount Front	30.1 mm	200000 Cycles	No Marking	Button Flush Round	SPDT	1500000 Cycles	Quick Connect - 0.110" (2.8mm)	On-Mom	125 V	-25 °C	85 °C	24 V
SCHURTER Inc. MSM30-NX00A10-SNCSNCNF-RI0GN024-Q0000-S	Silver	Green LED	100 mA	Anti-Vandal Illuminated	IP40	Panel Mount Front	30.1 mm	200000 Cycles	No Marking	Button Flush Round	SPDT	1500000 Cycles	Quick Connect - 0.110" (2.8mm)	On-Mom		-25 °C	85 °C	24 V	30 V
SCHURTER Inc. MSM30-NX0010A-SNCSNCNF-RI0RD024-Q0000-S	Silver	LED Red	10 A	Anti-Vandal Illuminated	IP40	Panel Mount Front	30.1 mm	50000 Cycles	No Marking	Button Flush Round	SPDT	1500000 Cycles	Quick Connect - 0.110" (2.8mm)	On-Mom	250 V	-25 °C	85 °C	24 V
SCHURTER Inc. MSM30-NX0005A-SNCSNCNF-RI0GN024-Q0000-S	Silver	Green LED	5 A	Anti-Vandal Illuminated	IP40	Panel Mount Front	30.1 mm	200000 Cycles	No Marking	Button Flush Round	SPDT	1500000 Cycles	Quick Connect - 0.110" (2.8mm)	On-Mom	125 V	-25 °C	85 °C	24 V
SCHURTER Inc. MSM30-NX0010A-SNCSNCNF-RI0GN024-Q0000-S	Silver	Green LED	10 A	Anti-Vandal Illuminated	IP40	Panel Mount Front	30.1 mm	50000 Cycles	No Marking	Button Flush Round	SPDT	1500000 Cycles	Quick Connect - 0.110" (2.8mm)	On-Mom	250 V	-25 °C	85 °C	24 V
SCHURTER Inc. MSM30-NX00A10-SNCSNCNF-RI0BL024-Q0000-S	Silver	Blue LED	100 mA	Anti-Vandal Illuminated	IP40	Panel Mount Front	30.1 mm	200000 Cycles	No Marking	Button Flush Round	SPDT	1500000 Cycles	Quick Connect - 0.110" (2.8mm)	On-Mom		-25 °C	85 °C	24 V	30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.19

Description

General part information

MSM30-NX Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
