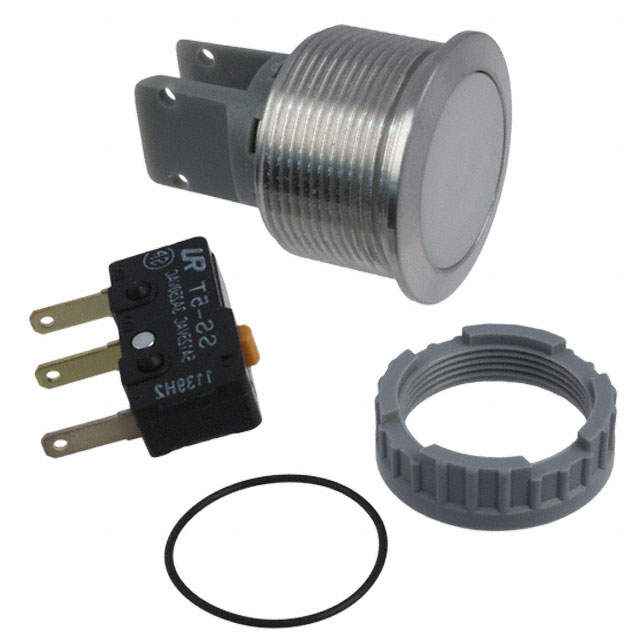

1241.7031.1120000

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 125V

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.7031.1120000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	5 A
Electrical Life	200000 Cycles
Features	Ceramic Actuator
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal
Voltage Rating - AC	125 V

Part	Color - Actuator/Cap	Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Actuator Type	Termination Style	Current Rating (Amps)	Switch Function	Ingress Protection	Voltage Rating - AC	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Mounting Type	Actuator Marking	Features
SCHURTER Inc. 1241.7031.1120000	Clear	Anti-Vandal	22.1 mm	1500000 Cycles	Button Flush Round	Quick Connect - 0.110" (2.8mm)	5 A	On-Mom	IP40	125 V	200000 Cycles	-25 °C	85 °C	SPDT	Panel Mount Front	No Marking	Ceramic Actuator
SCHURTER Inc. 1241.7031.1130000	Clear	Anti-Vandal	22.1 mm	1500000 Cycles	Button Flush Round	Quick Connect - 0.110" (2.8mm)	10 A	On-Mom	IP40	250 V	50000 Cycles	-25 °C	85 °C	SPDT	Panel Mount Front	No Marking	Ceramic Actuator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.90

General part information

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
