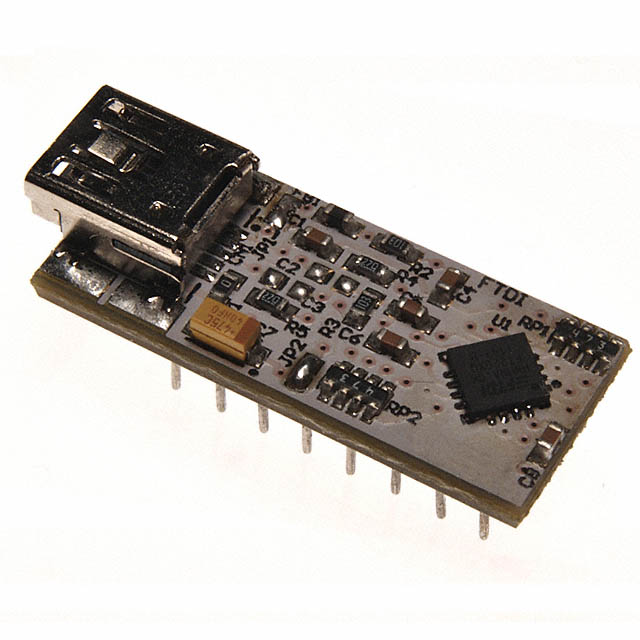

UMFT220XA-01

Active

FTDI, Future Technology Devices International Ltd

MOD USB SPI/FT1248 DEV FT220X

Search across all available documentation for this part.

Active

FTDI, Future Technology Devices International Ltd

MOD USB SPI/FT1248 DEV FT220X

Technical Specifications

Parameters and characteristics for this part

Specification	UMFT220XA-01

Contents	Board(s)
Embedded	Yes, ASIC
Function	USB 2.0 to 4bit SPI/FT1248
Primary Attributes	USB Full Speed, 16-Pin DIP Socket, Mini-B Socket
Primary Attributes	0.3 in
Secondary Attributes	USB Charging Detection
Supplied Contents	Board(s)
Type	Interface
Utilized IC / Part	FT220X

Part	Supplied Contents	Secondary Attributes	Type	Utilized IC / Part	Embedded	Primary Attributes	Contents	Function	Primary Attributes
FTDI, Future Technology Devices International Ltd UMFT220XB-01	Board(s)	USB Charging Detection	Interface	FT220X	Yes ASIC	Female Connector	Board(s)	USB 2.0 to 4bit SPI/FT1248
FTDI, Future Technology Devices International Ltd UMFT220XB-WE	Board(s)	USB Charging Detection	Interface	FT220X	Yes ASIC	Flying Leads	Board(s)	USB 2.0 to 4bit SPI/FT1248
FTDI, Future Technology Devices International Ltd UMFT220XB-NC	Board(s)	USB Charging Detection	Interface	FT220X	Yes ASIC	PCB Pads	Board(s)	USB 2.0 to 4bit SPI/FT1248
FTDI, Future Technology Devices International Ltd UMFT220XA-01	Board(s)	USB Charging Detection	Interface	FT220X	Yes ASIC	16-Pin DIP Socket Mini-B Socket USB Full Speed	Board(s)	USB 2.0 to 4bit SPI/FT1248	0.3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FT220X USBmadeEZ-FIFO, FT-X, X-Chip USB 2.0 to 4bit SPI/FT1248 Interface Evaluation Board
